Wide-Angle Stabilized Video

The Avata comes equipped with a 48MP 1/1.7" CMOS sensor, which supports up to 4K video at 100 fps. This footage is shot with an ultra-wide 155° FOV that mimics how we see with our own eyes for a natural and realistic experience. The footage is stabilized in two ways using RockSteady 2.0 EIS and HorizonSteady EIS. RockSteady EIS works to reduce camera shake, while HorizonSteady locks the Avata's footage to a level horizon.

O3+ Transmission

Utilizing 2T2R omnidirectional antennas, the Avata can feed your controller or compatible FPV goggles (both not included) with Full HD 1080p video at up to 100 fps, with only a 30 ms latency, and at a 50 Mb/s data transfer rate. The footage is compressed with H.265 to save on storage space when saving videos, and it can be sent from up to 6.2 miles away.

Obstacle Sensing

A downward binocular vision sensor and ToF depth sensor work conjunctively to detect obstacles on the ground during flight. This gives pilots the ability to safely fly low-altitude and indoor flights.

Turtle Mode

The propeller guards usually let the Avata take a bump and keep on flying, but what if the Avata hits hard enough to fall and land on its back like a turtle? Just activate Turtle Mode with a few taps to have the Avata flip itself right side up and get back to flying.

Virtual Flight App

Designed for Windows, iOS 12.0+, and Android 9.0+, this software lets new and experienced pilots practice flying indoors and outside, honing their skills from a variety of preinstalled simulated scenarios.

Additional Features

Shoot in D-Cinelike mode to allow for advanced color grading during post-production
Ducted aerodynamic design for up to 18 minutes of flight time
Three speed modes: Normal (up to 17.9 mph), Sport (up to 31.3 mph), and Manual (up to 60.4 mph)
Take still JPEG photos at up to 4000 x 3000 resolution
Capable of withstanding Level 5 winds of up to 24 mph
microSD slot for optional cards up to 256GB
Compatible with FPV Remote Controller 2, Goggles V2, FPV Goggles V2, and DJI Motion Controller

Specs

Performance

Maximum Takeoff Weight	14.5 oz / 410 g
Maximum Horizontal Speed	17.9 mph / 8 m/s (Normal) 31.3 mph / 14 m/s (Sport) 60.4 mph / 27 m/s (Manual)
Maximum Ascent Speed	13.4 mph / 6 m/s
Maximum Descent Speed	13.4 mph / 6 m/s
Maximum Wind Resistance	23.9 mph / 10.7 m/s
Flight Ceiling	3.1 Miles / 5000 m
Maximum Flight Time	18 Minutes
Maximum Hover Time	18 Minutes
Hovering Accuracy	±0.3' / 0.1 m Vertical with Vision Positioning ±1.6' / 0.5 m Vertical with GPS ±1.0' / 0.3 m Horizontal with Vision Positioning ±4.9' / 1.5 m Horizontal with GPS

Camera

Sensor Type	1/1.7"-Type CMOS Sensor
Sensor Resolution	Effective: 48 Megapixel
Focal Length	2.3mm / 12.7mm (35mm Equivalent)
Field of View	155°
Maximum Aperture	f/2.8
Minimum Focus Distance	2' / 0.6 m
ISO Sensitivity	100 to 6400 in Auto Mode 100 to 25,600 in Manual Mode
Shutter Speed	1/8000 to 1/50 Seconds
Video Format	3840 x 2160p at 50/60 fps (150 Mb/s MP4 via H.265/HEVC) 2704 x 1520p at 50/60/100 fps (150 Mb/s MP4 via H.265/HEVC) 1920 x 1080p at 50/60/100 fps (150 Mb/s MP4 via H.265/HEVC)
Still Image Support	JPEG (4000 x 3000)
Internal Storage	20 GB
Media/Memory Card Slot	Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum]
Photo Modes	Single Shot

Gimbal

Number of Axes	1 (Pitch)
Control Range	Pitch: -80 to 65°
Angular Speed	Pitch: 60°/s
Control Accuracy	±0.01°

Flight Control System

GNSS Support

GPS, BeiDou, Galileo

Vision System

Vision System	Downward
Obstacle Sensory Range	1.6 to 65.6' / 0.5 to 20.0 m
Operating Environment	Surface with Clear Patterns at >15 lux

Remote Controller / Transmitter

Maximum Operating Distance

6.2 Miles / 10 km

Flight Battery

Battery Chemistry	Li-ion
Battery Capacity	2420 mAh / 35.71 Wh
Charging Temperature	41 to 104°F / 5 to 40°C
Weight	5.7 oz / 162 g

General

Rotor Configuration	4
Operating Temperature	14 to 104°F / -10 to 40°C
Diagonal Size	4.7" / 120 mm
Overall Dimensions	7.1 x 3.1 x 7.1" / 180.0 x 80.0 x 180.0 mm

In The Box

DJI Avata FPV Drone

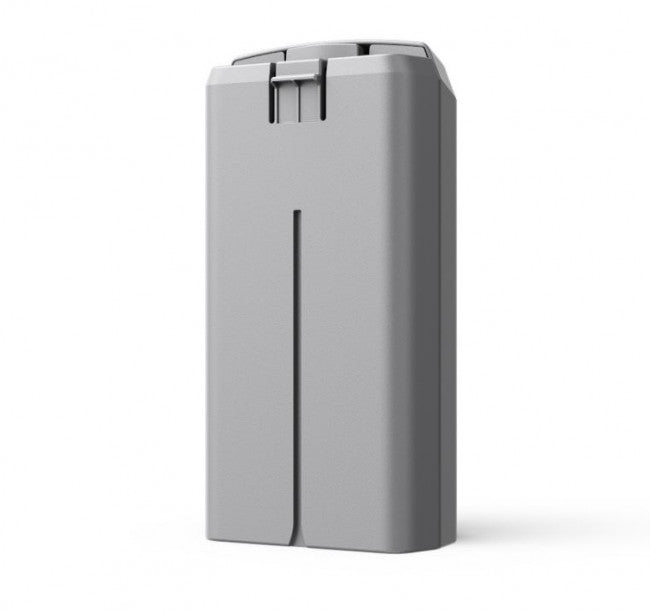

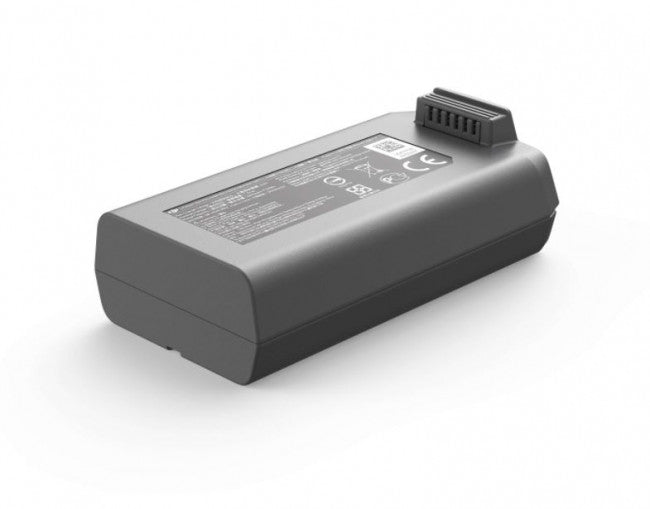

Intelligent Flight Battery
Propellers (Pair)
Power Adapter
Gimbal Protector
USB Type-C PD Cable
Screwdriver
M2x7 Screws
