Description

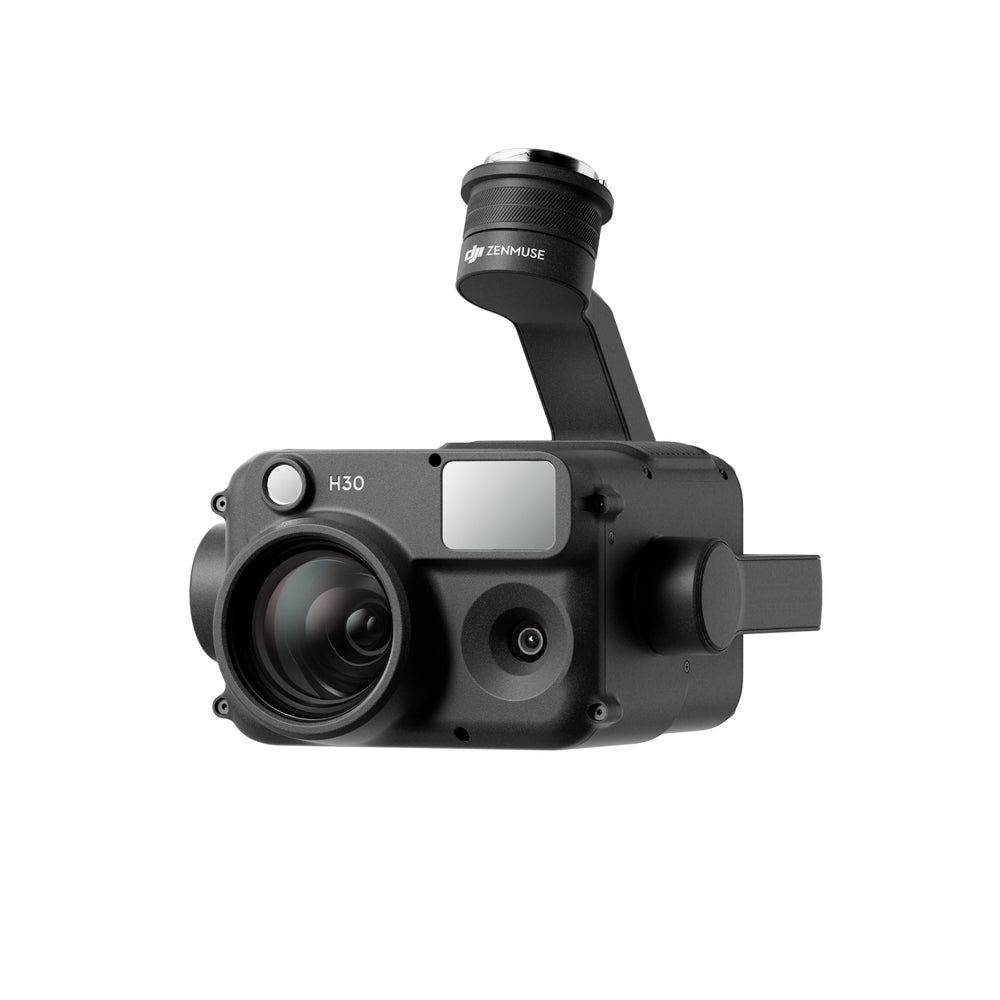

The all-weather, multi-sensor flagship Zenmuse H30 Quad-Sensor Camera integrates four modules—a wide-angle camera, a zoom camera, a laser rangefinder, and an NIR auxiliary light. Employing cutting-edge intelligent algorithms, it revolutionizes perception and imaging standards, transcending the limitations of day and night vision. This makes it effortlessly suitable for a variety of operations including public safety, energy inspection, water conservation, and forestry.
All-Weather, Full-Day and Multi-Sensor Flagship Payload
- Wide Camera: 48 MP 1/1.3" CMOS (24mm Focal Length)
- Zoom Camera: 40 MP 1/1.8" CMOS (34x Optical Zoom, 400x max digital zoom)
- Laser RangeFinder: 3 km (~9842 ft) Range
-

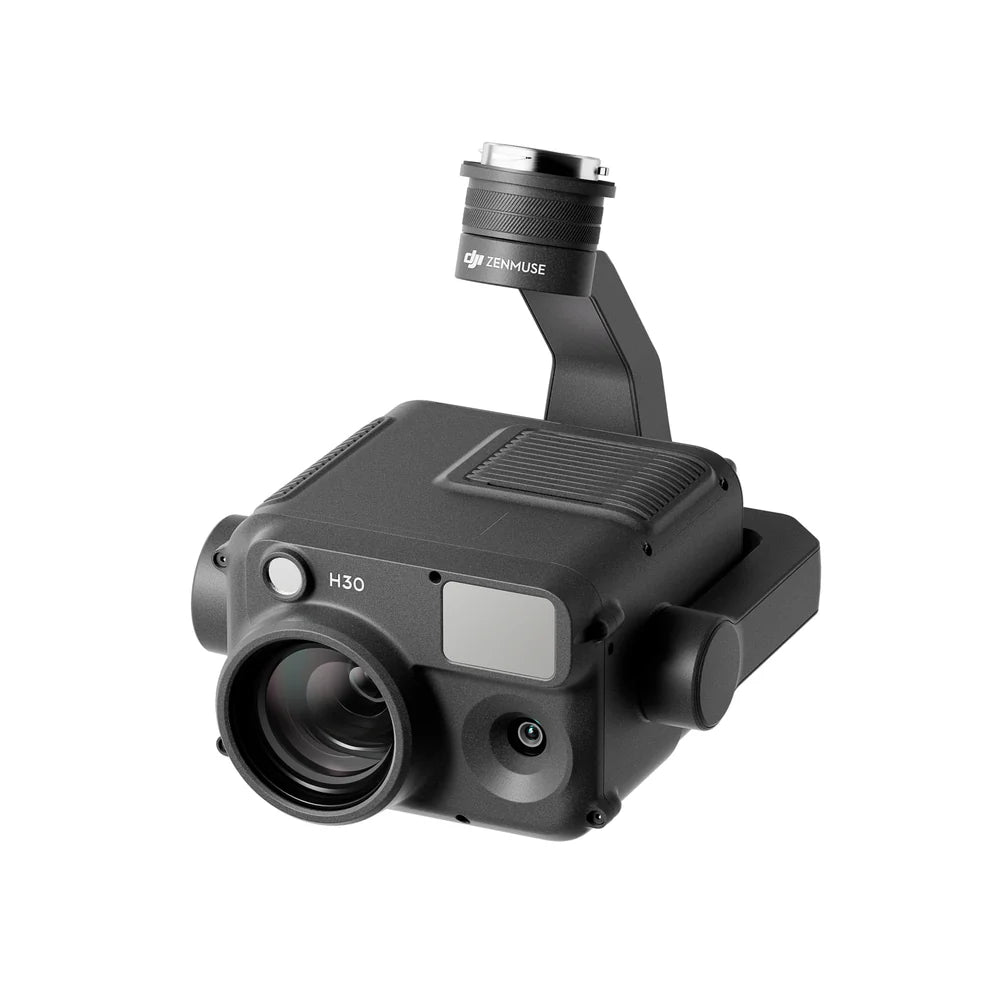

NIR Auxiliary Light: Provides better auxiliary illumination for zoom camera
The Zenmuse H30 empowers operators with high-magnification zoom once a target is recognized using the wide camera view/sensor. The laser rangefinder provides distance and location information of a subject which can be mission-critical information in many applications such as search and rescue, inspection, and more.
Laser ranging can measure the distance of objects within the measurement range (up to 3 km), and displays the distance from the aircraft, relative height, and GPS position of the measured object.
Superior Zoom Performance
- 34x max. optical zoom
- 400x max. digital zoom
- Optimized stabilization in telephoto video
- Maintained clarity during zooming
- Faster focusing speed
Additional Features of the Zenmuse H30T
- IP54 Rating
- -20°C to 50°C (-4°F to 122°F) operating temperature
- Active image stabilization and EIS
- Night scene mode
Zenmuse H30 Intelligent Camera Functions
Click to Aim: No more having to waste time trying to use your gimbal yaw and tilt controls, simply double-click on the point of interest and your camera/gimbal will automatically move to the point of interest.
Smart Track: Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.
High-Res Grid Photo: This function allows you to take an overview photo using the wide camera sensor, and using the zoom camera, a set of 40 MP images will be captured of the grid area. This allows you to efficiently be able to observe a subject and easily be able to view the subject in greater detail.
Night Scene: This function provides great vision benefits in low-light environments with enhanced noise reduction and IR light options.
Specs
Zenmuse H30 Specs
General
| Weight | 960±5g |
| Dimensions | 180×140×165 mm |
| Ingress Protection (IP) Rating | IP54 |
| Operating Temperature | 20℃ ~ 50℃ (-68°F to 122°F) |
| Storage Temperature | -30°C to 60°C (-22°F to 140°F) |
| Laser Safety | Class 1M |
| Compatibility | Matrice 300 RTK (only with DJI RC Plus), Matrice 350 RTK |

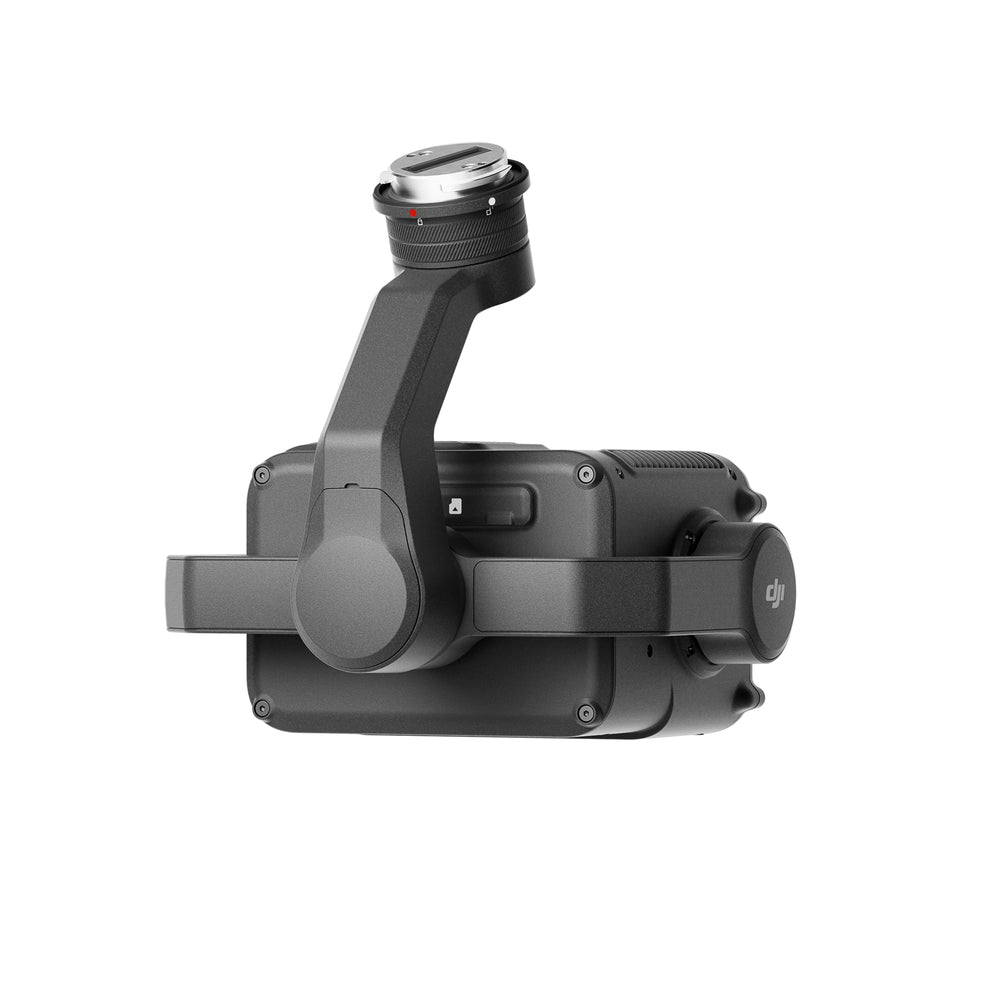

Gimbal
| Angular Vibration Range | ±0.01° |
| Mount | Detachable |
| Controllable Range | Tilt: -120° to +30° Pan: ±320° |
Zoom Camera
| Sensor | 1/1.8" CMOS, 40 MP |
| Lens | DFOV: 66.7°-2.9° Focal length: 7.1-172 mm (effective: 33.4-809.3 mm) Aperture: f/1.6-f/5.2 Focus: 5 m to ∞ (wide) |
| Focus Mode | Auto/Manual |
| Exposure Mode | Program AE |
| Exposure Compensation | ±3.0 (1/3 EV step) |
| Metering Mode | Center-weighted |
| AE Lock | Supported |
| Electronic Shutter Speed | 1/2000 - 1/30 s |
| ISO Range | Normal: 100 - 25600 Night Scene Mode: 100 - 819200 |
| Video Resolution | 3840x2160@30fps, 1920x1080@30fps |
| Video Format | MP4 |
| Video Subtitles | Supported |
| Max Photo Size | 7328 x 5496 |
| Photo Format | JPEG |
Zoom Camera
| Sensor | 1/1.8" CMOS, 40 MP |
| Lens | DFOV: 66.7°-2.9° Focal length: 7.1-172 mm (effective: 33.4-809.3 mm) Aperture: f/1.6-f/5.2 Focus: 5 m to ∞ (wide) |
| Focus Mode | Auto/Manual |
| Exposure Mode | Program AE |
| Exposure Compensation | ±3.0 (1/3 EV step) |
| Metering Mode | Center-weighted |
| AE Lock | Supported |
| Electronic Shutter Speed | 1/2000 - 1/30 s |
| ISO Range | Normal: 100 - 25600 Night Scene Mode: 100 - 819200 |
| Video Resolution | 3840x2160@30fps, 1920x1080@30fps |
| Video Format | MP4 |
| Video Subtitles | Supported |
| Max Photo Size | 7328 x 5496 |
| Photo Format | JPEG |
Wide Camera
| Sensor | 1/1.3" CMOS, 48 MP |
| Lens | DFOV: 82.1° Focal length: 6.72 mm (effective: 24 mm) Aperture: f/1.7 Focus: 1 m to ∞ |
| Exposure Mode | Program AE |
| Exposure Compensation | ±3.0 (1/3 EV step) |
| Metering Mode | Center-weighted |
| AE Lock | |
| Shutter Speed | 1/2000 - 1/30 s |
| ISO Range | Normal: 100 - 25600 Night Scene Mode: 100 - 409600 |
| Video Resolution | 3840x2160@30fps, 1920x1080@30fps |
| Video Format | MP4 |
| Video Subtitles | |
| Max Photo Size | 8064 x 6048 |
| Photo Format | JPEG |
NIR Auxiliary Light
| Bandwidth | NIR |
| Wavelength | 850nm |
| Illumination Range | @100 m: Approx. 8m diameter circle (328 ft, 26 ft) |
Laser Rangefinder
| Wave Length | 905 nm |
| Measurement Range | 3-3000 m (~9842 ft) (to a vertical surface with ≥12m diameter and 20% reflection rate) |
| Measurement Accuracy | ± (0.2 m + D×0.15%) D is the distance to a vertical surface |
Zenmuse H30 Features
| Hybrid Optical Zoom | 34x |
| Max. Zoom | 400x |
| One Click Capture | One click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously |
| Point to Aim | Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest |
| High-Res Grid Photo | Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 40 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail. |
| Night Scene | Supported (zoom camera and wide camera) |
| Timestamp | Including GPS, date, and time |
Storage
| Supported SD Card | MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required) |
| Supported File Systems | FAT32 (≤ 32 GB), exFAT (> 32 GB) |

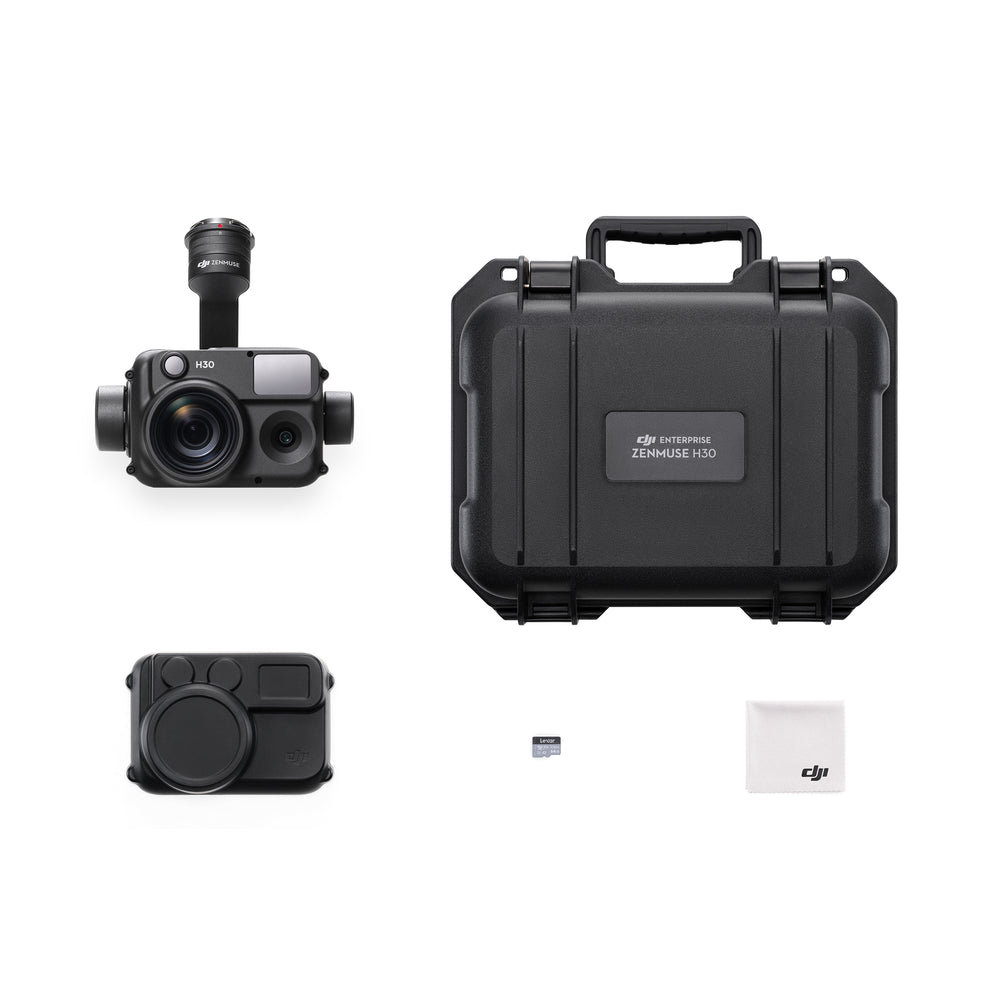

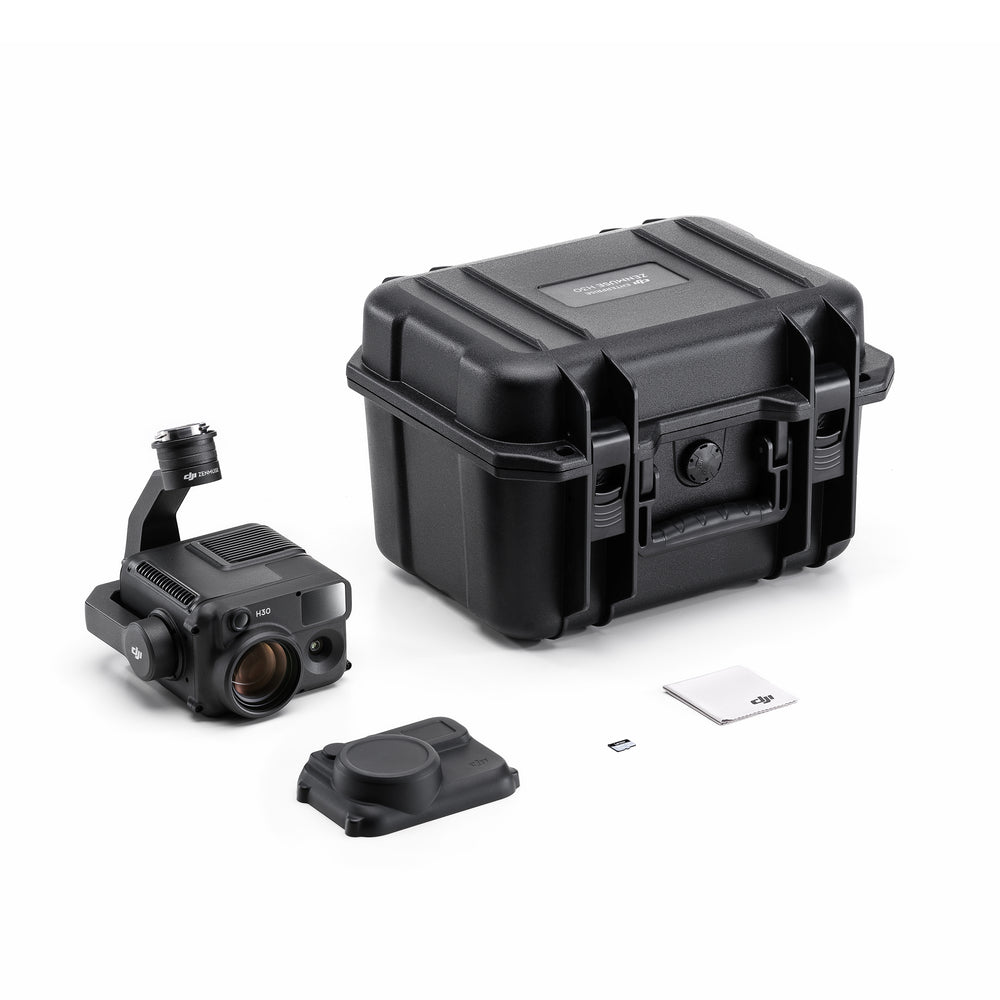

In The Box
(1) H30 Gimbal & Camera
(1) Lexar Professional 1066x UHS-I microSDXC Memory Card 64GB

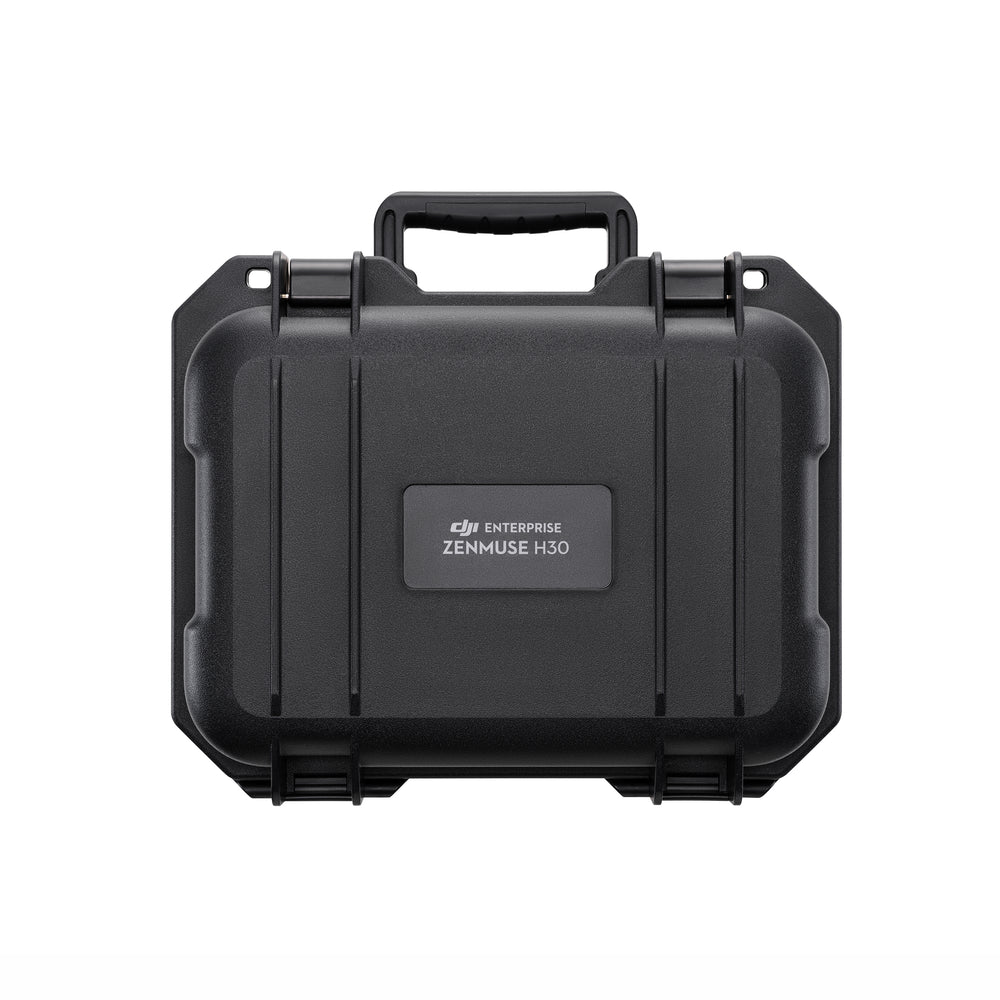

(1) Storage Case
(1) Lens Cleaning Cloth
Compatibility
DJI Matrice 300 RTK (with DJI RC Plus only)
DJI Matrice 350 RTK
