Workswell WIRIS® Enterprise + PIXY WE Thermal Sensor

WorkswellSKU: INF102726

Sale price$19,750.00

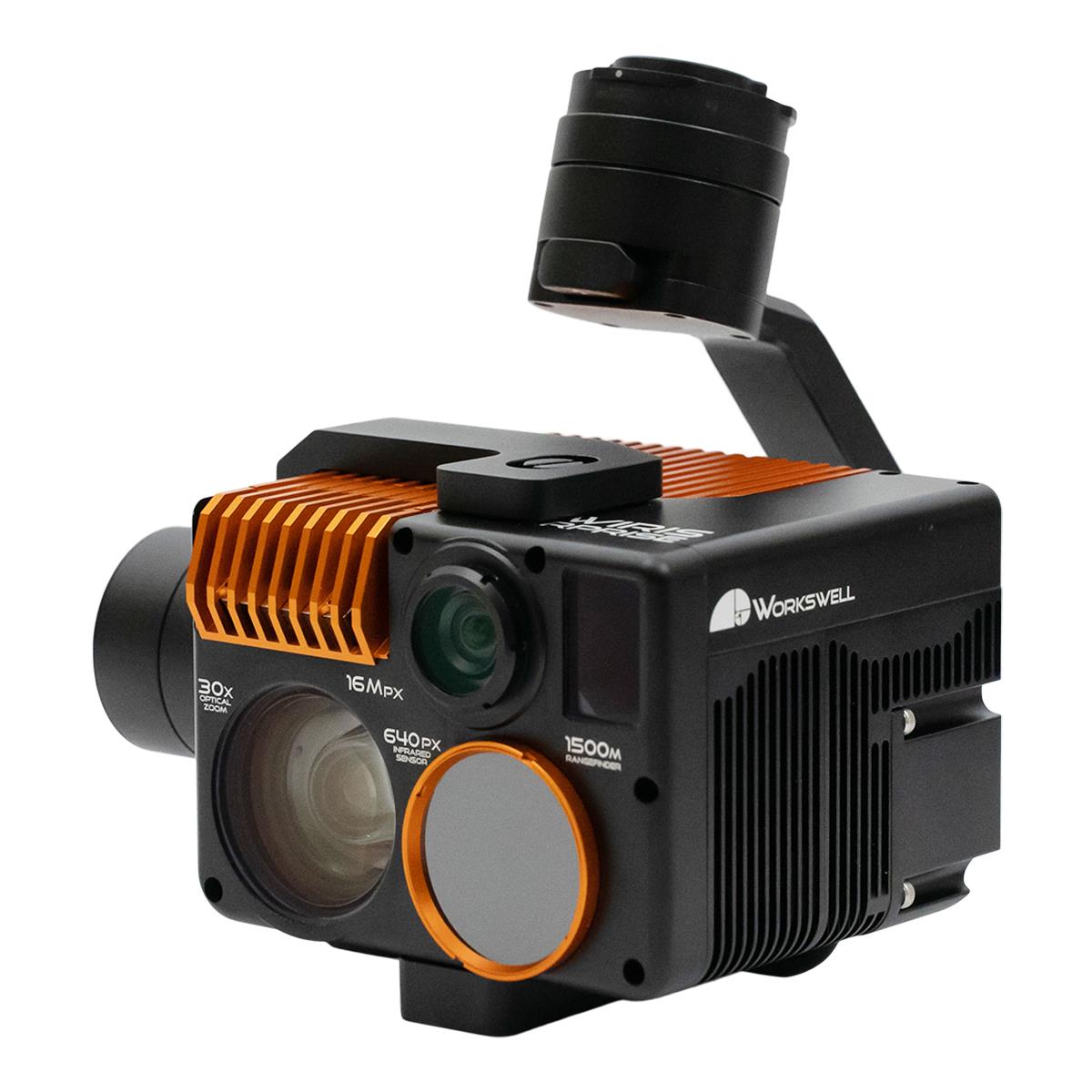

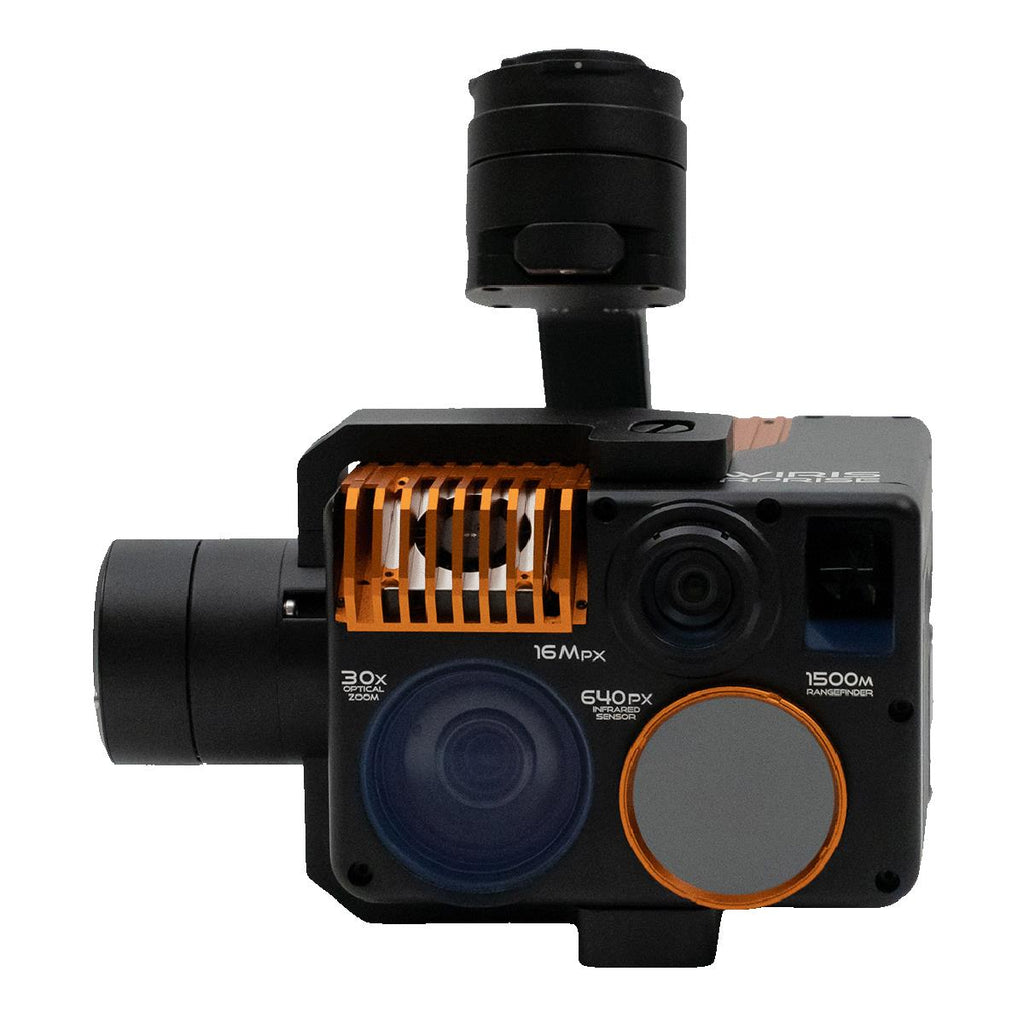

Workswell UAV Series WIRIS Enterprise - Advanced Multi-Sensor Camera UAV/UGV Payload

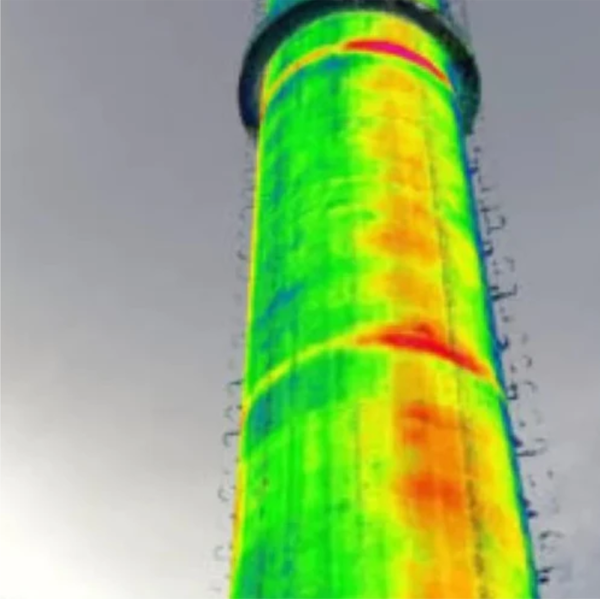

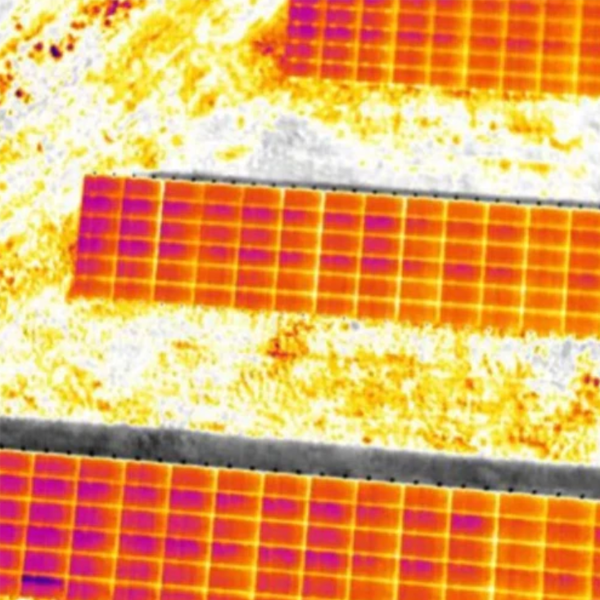

Workswell WIRIS Enterprise is a Multi-sensor Camera that has been specifically designed for use with unmanned aerial vehicles (UAV/UGV), or drones. The WIRIS OS and integrated sensors provide unprecedented aerial imaging capabilities for a range of commercial drone applications, including thermal inspections, security applications, firefighting, geological, archeological, forestry studies, ecological and environmental research.

Top Tier Specifications
Workswell WIRIS Enterprise has been designed first and foremost as an inspection camera. Its thermal camera is equipped with a LWIR microbolometric sensor with 640 x 512 px resolution (in the 7.5 - 13.5 microm range) and the Super resolution mode functionality providing an option to have the final thermogram in the 1 266 x 1 010 px resolution.

The first RGB camera comes with 16Mpx resolution., which is designed primarily for high-resolution imagery and terrain mapping. Second RGB camera comes with Full HD (1920 x 1080 px) resolution and, most importantly, it provides an absolutely unrivaled optical ultrazoom 30x in real-time, which is suitable for security applications.

For Any UAV Thermography Application

Thermolab is a software for detailed analysis of thermograms, allowing the user to edit the data into different formats and create clear reports from the thermograms. All standard data analysis functions are available in the program (temperature at a point, minimum and maximum of the area, temperature profile, zoom, temperature scale change, color palette, emissivity, etc.)

IP66 and Rugged Construction
Industrial inspections are often carried out in demanding environments. As a result, there is a high risk that inspection cameras will be damaged during the course of their normal use. That's why the WIRIS Enterprise is coming with IP66 rating - Complete protection from dust, oil, and other non-corrosive material also waterproof against rain, snow even from powerful jets of water.

Ensconced in a rugged case of lightweight aluminum. What's more, the most sensitive component of the entire system, the thermal camera lens, is protected by a replaceable protective cap made of germanium.

Workswell built the WIRIS OS to ensure the security of its WIRIS systems while enhancing their diagnostic capabilities. The WIRIS OS is simply the only software that enables the maximum utilization of the WIRIS Pro's hardware. Together, Workswell's hardware and software offer advanced measurement functions that cannot be replicated by any other product on the market.

Develop Your Own Applications
Along with the Workswell WIRIS Pro, we provide an SDK (Standard Development Kit) that enables end-user application development. These libraries give access to low-level functionalities and help the application developer to maximize the potential of the camera's hardware.

There are two SDK variants - the WIRIS Stream SDK, and the WIRIS Data SDK.

Precise Metrology
We know that industrial applications present a serious challenge to metrological endeavors. To ensure the accuracy of our devices in the face of this challenge, we calibrate each of our lenses individually. Our thermal cameras are individually manufactured and precisely calibrated, and we deliver a final calibration certificate along with each unit.

The Widest Range of Connectivity
Workswell's WIRIS Pro offers an interface enabling the widest range of connections to the drone, the control unit, an external GPS sensor, and other devices. We provide a Wi-Fi low latency live video streaming and command link, and the WIRIS Stream SDK is also available.

HW Communication, Control Ports and Interfaces
• Can bus (DJI M600 and A3 controller compatible)
• Ethernet (RJ 45 with RTPS streaming and control signals transmission option)
• MavLink - Provides a wide range of standard and custom commands for controlling the thermal camera during the flight
• GPS connection potential
• External trigger
• Can bus & UART serial communication

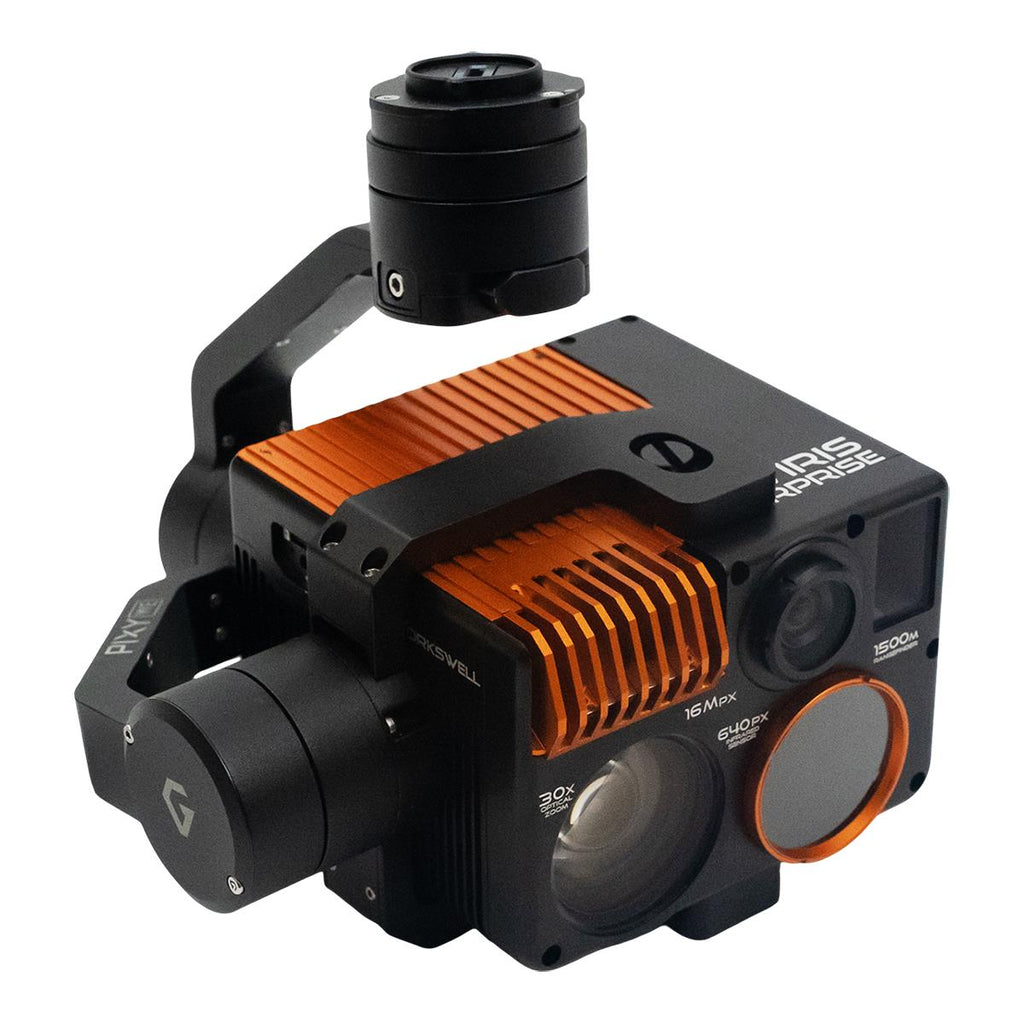

Gremsy Pixy WE Gimbal
Pixy WE is the gimbal tailored for Workswell Wiris Enterprise, making the flawless combination ready to be used for all unmanned vehicles. The gimbal comes with all advanced built-in function to serve mapping, security and high-resolution imagery applications.

Inspired Flight WIRIS Enterprise Features

  • High temperature range up to 1500 Degree C
  • Precise laboratory calibration +/-2% or +/-2 Degree C
  • Thermal camera image resolution 1266 x 1010
  • 30x optical rgb zoom with night vision mode
  • Range finder up to 1500m detection
  • Visual camera resolution 16MPX
  • It Includes Gremsy Pixy WE Gimbal

Quick Specifications:

  • 16MPX RGB Wide Camera
  • 30x Optical Zoom RGB Camera
  • Thermal Camera Sensor Resolution: 640 x 512pxPX Infrared Sensor
  • Optical Range Finder: 5 – 1500M detection
  • Ethernet Port
  • S.BUS protocol, Mavlink protocol, CANbus, Command Control Protocol – UART, Digital I/O
  • IP66 Water Protection
  • IF1200A
In The Box
  • Inspired Flight Workswell WIRIS Enterprise 16MPX Advanced Multi-Sensor UAV/UGV Thermal Camera with Lens
  • Gremsy Pixy WE Gimbal with Quick Disconnect
  • Dampening Plate
  • Lens Cap
  • Calibration Certificate
  • Micro SD Card
  • Micro HDMI Cable
  • 3x Connectors (1x Power Supply & 2x AUX)
  • Power Supply & AUX 2-Pin Wire Cable (2m)
  • USB Mass Storage Cable
  • Software ThermoLab Free License
  • Hard Transport Case
  • Rugged Payload Case
  • User Manual
  • Inspired Flight 90 Day Limited Warranty
