Inspired Flight IF800 Tomcat Quadcopter - Blue Herelink EO/IR Bundle - Gremsy VIO EO/IR Payload

Inspired FlightSKU: 103128

Price:
Sale price$39,900.00

Description

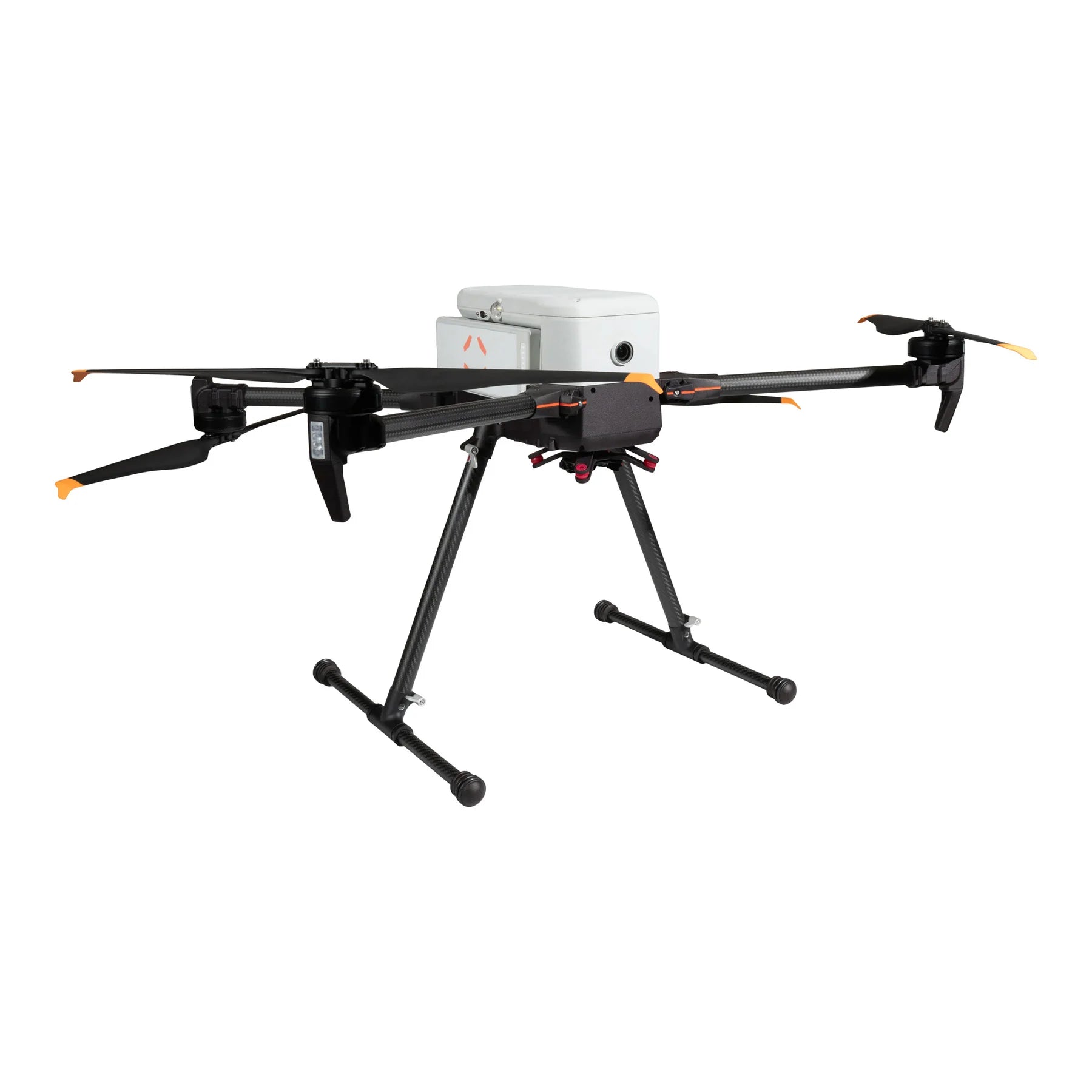

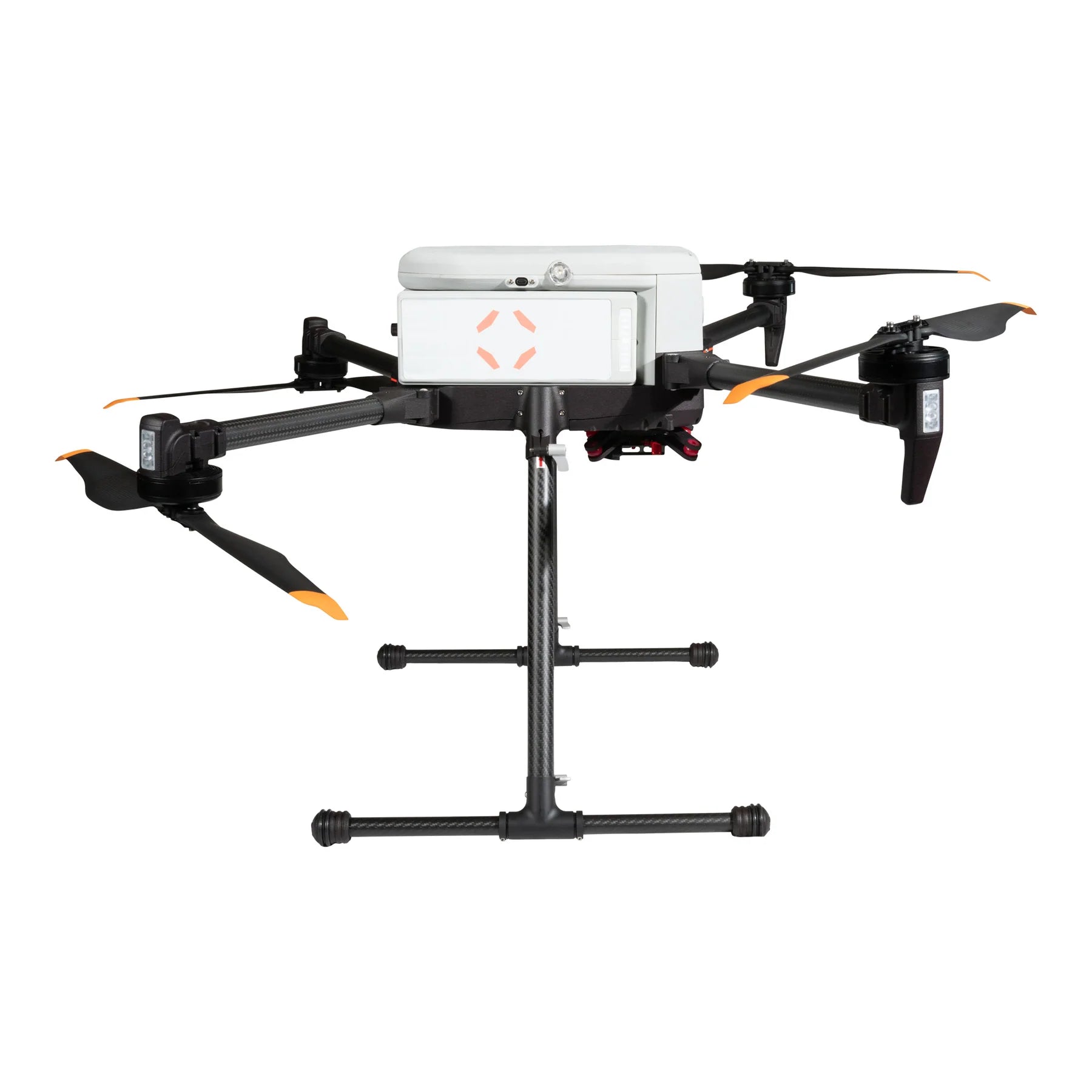

Inspired Flight IF800 Tomcat - Portable. Dependable. Deployable.

The IF800 Tomcat by Inspired Flight features a lightweight, compact, and foldable frame, making it easily transportable and deployable in diverse environments. Its specially designed case provides ample space for batteries and payload, ensuring convenience and protection during transit. Professionals in need of cutting-edge aerial capabilities, such as infrastructure inspections, terrain mapping, or LiDAR surveys, can rely on the IF800 Tomcat as a dependable and versatile tool.

Extraordinary Flight Time and Capacity

With an impressive flight time of 40 minutes and a payload capacity of 1.5 kg (max payload 3 kg), the medium-lift IF800 Tomcat maximizes operational efficiency and productivity. Its dual hot swappable smart batteries enable uninterrupted flight operations, while the easy slide installation ensures minimal downtime during battery swaps.

Advanced Features

Equipped with advanced features, the IF800 Tomcat enhances its performance and functionality. The 30-degree upward-angle shooting capability allows users to capture crucial data from unique perspectives, expanding the possibilities of aerial missions. The inclusion of an FPV (First-Person View) camera enables operators to have real-time visual feedback and precise control during flights.

Unwavering Commitment to National Security

As a significant advancement in both performance and compliance, the IF800 Tomcat emerges as a compelling alternative to non-US manufactured drones. Its cutting-edge technology and unwavering commitment to national security make it a trusted drone solution for commercial and government agencies, ensuring the safeguard of sensitive data and enhancing operational efficiency.

Inspired Flight manufacturers all of their systems, including the IF800 Tomcat, without reliance on foreign technologies that are prohibited by the U.S. National Defense Authorization Act (NDAA).

Key Features

  • 54 min. flight time with 1.5 kg payload (max payload 3kg)
  • Dual hot swappable smart batteries with easy slide installation
  • Lightweight, compact & foldable frame
  • Easily transportable case with enough room for batteries & payload
  • 30 degree upward-angle shooting
  • FPV camera
  • NDAA & Blue UAS compliant
  • Available in two (2) bundles:
    • IF800 Tomcat Quadcopter with Blue Herelink Ground Control Station
    • IF800 Tomcat Quadcopter with Black Herelink Ground Control Station

Featured Payloads *not included in base price

  • Sony A7R + 35MM Lens:  Sony A7R 61MP camera and a 35MM Lens; Gremsy gimbal
  • Workswell Enterprise:  Workswell Enterprise thermal 16MPX camera capable of 30X optical RGB zoom and night vision mode; Pixy WE gimbal

Inspired Flight IF800 Tomcat - Advancing Critical Technology in the United States

Specs

Performance

Max Ascent Speed:   5 m/s, 16 ft/s
Max Descent Speed:   3 m/s, 10 ft/s
Max Air Speed:   25 m/s, 56 mph
Max Wind Resistance:   10 m/s 12 m/s gusts, 19 knot 23 knot gusts
Max Tilt Angle:   30°
Max Angular Velocity:   Tilt: 300°/s, Yaw: 120°/s
Operating Temperature:   -10°C ~ 40°C, 14°F ~ 104°F
Operating Humidity:   10%~95%
Service Ceiling (with given payload):  4.3 km (14,100 ft) w/1.3 kg, 2.8 km (9,200 ft) w/3.0 kg

Physical Features

Diagonal Size (propeller center to center):   935 mm, 36.8 inches
Unfolded Size (flight ready, WxLxH):   135 x 116 x 45 cm, 53.1 x 45.6 x 17.7 inches
Folded Size (stow, WxLxH):   38 x 48 x 19 cm, 18.9 x 15.0 x 7.5 inches
Empty Weight (w/o batteries):   3.5 kg, 7.7 lbs
Weight w/ Batteries:   7.7 kg, 16.9 lbs
Max Gross Takeoff Weight:   10.7 kg, 23.5 lbs
Max Payload Capacity:   3.0 kg, 6.6 lbs
Transport Case Size (WxLxH):   52.8 x 80.7 x 31.7 cm, 20.8 x 31.8 x 12.5 inches
Transport Case Weight (w/ aircraft & GCS):   18 kg, 40 lbs

Flight Stack

Flight Controller:   CubePilot Cube Blue H7
GNSS / Compass:   CubePilot Here4 Blue (2x)
Payload Power Rails:   5v, 12v, 18v
Payload Interface:   IFT Universal Payload Interface V3
Operating Software:   Copter by Ardupilot

Flight Modes

Position Hold:   Automatically holds altitude and position, manually change position
Loiter:   Holds altitude and position, precision manual movements using GPS
Auto:   Executes pre-defined mission
RTL:   Auto returns to takeoff location and lands
Land:   Auto land while maintaining horizontal position
Altitude Hold:   Holds altitude only, failsafe mode if GPS signal lost

In The Box

IF800 - Blue Herelink

(1) IF800 Aircraft
(1) Gremsy VIO EO/IR Payload
(4) IF800 Propellers
(1) Blue Herelink Ground Controller
(1) Rugged Transport Case
(2) IF800 Battery
(1) IF800 Charger
