DJI Transmission with High-Bright Monitor Combo

Long-Distance HD Live Feed

DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 20,000' on-ground transmission distance. It also supports transmission at 1080p60 with a max bitrate of 50 Mb/s as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets an excellent remote visual and audio monitoring experience.

End-to-End Ultra-Low Latency

The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like the ARRI ALEXA Mini LF.

Seamless Auto Frequency Hopping

• O3 Pro adds a DFS band on top of the traditional 2.4 and 5.8 GHz, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels.
• DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.
• With a built-in frequency sweeper, users can even manually select a channel to avoid interference between devices.
• By mounting high-gain antennas, transmission capability is further boosted.

One Transmitter with Multiple Receivers for Coordinated Shooting

• Two transmission modes are available.
• In Control mode, DJI Transmission delivers optimal transmission performance. Monitoring can be done from two receivers at the same time, while the gimbal of Ronin 2 and RS 3 Pro and camera can be controlled remotely.
• Broadcast mode can be enabled on top of Control mode to enable an unlimited number of receivers (transmission performance differs from Control mode).
• On larger and more dynamic, DJI Transmission can operate with 20 or more transmitters sending signals to 20 or more devices, resulting in a smooth, coordinated experience that's difficult to get with traditional transmission setups.

Encrypted Transmission

DJI Transmission supports linking and AES 256-bit encryption to avoid leaks of confidential information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure security of your footage.

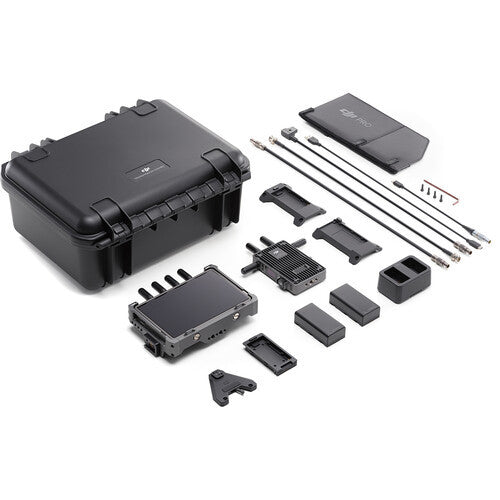

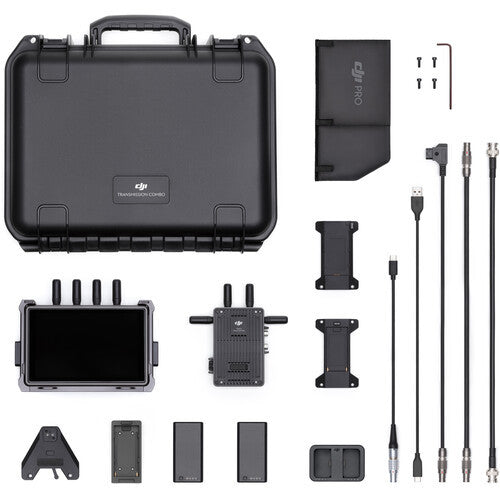

In The Box

• DJI Transmission with High-Bright Monitor Combo
• DJI Wireless Video Transmitter
• High-Bright Remote RX Monitor
• Remote Monitor Hood
• WB37 Battery Adapter (TX)
• 2 x WB37 Intelligent Battery
• WB37 Battery Charging Hub (USB Type-C)
• L-Series Battery Adapter (TX)
• L-Series Battery Adapter (RX)
• USB Type-C to LEMO Power Cable
• RS Gimbal Mounting Plate
• USB Type-C Cable
• SDI Cable
• DC Power Cable
• DC to D-Tap Power Cable
• Installation Toolkit
• 2 x Antenna
• Protector Case
• Limited 1-Year Manufacturer Warranty
