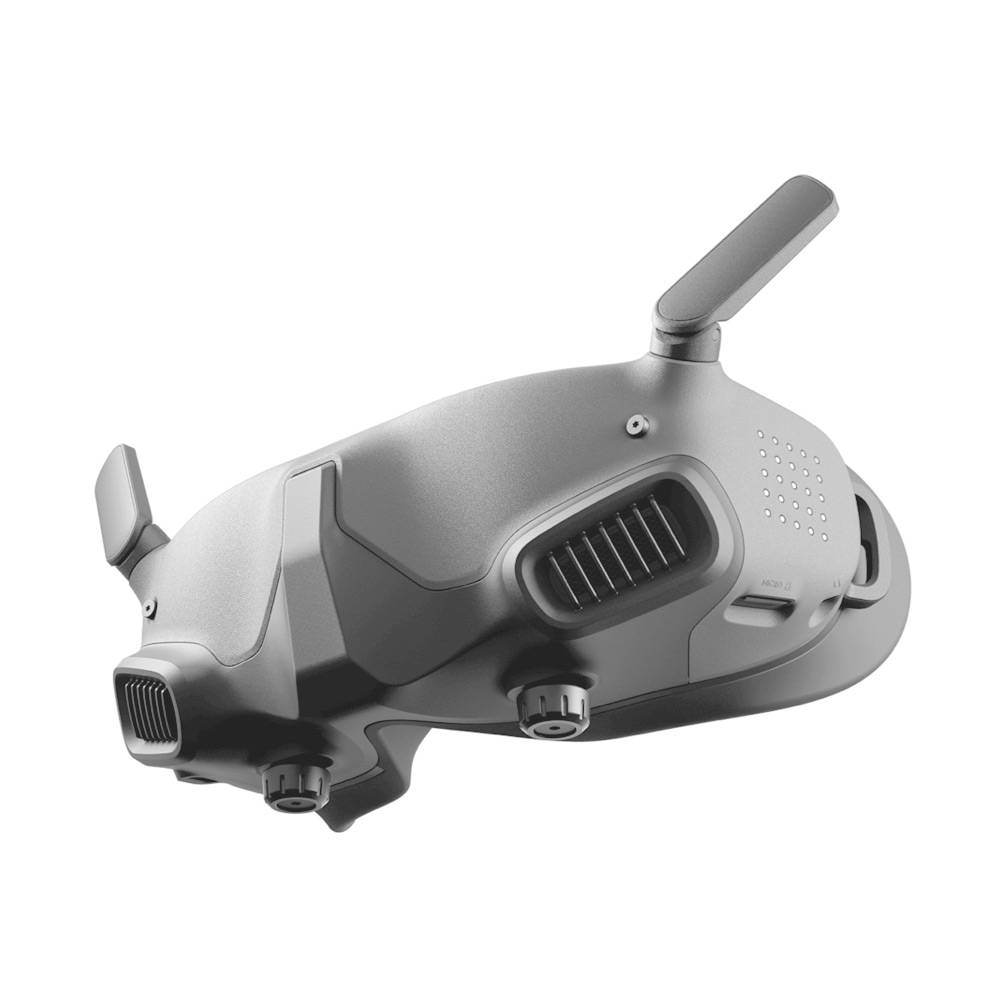

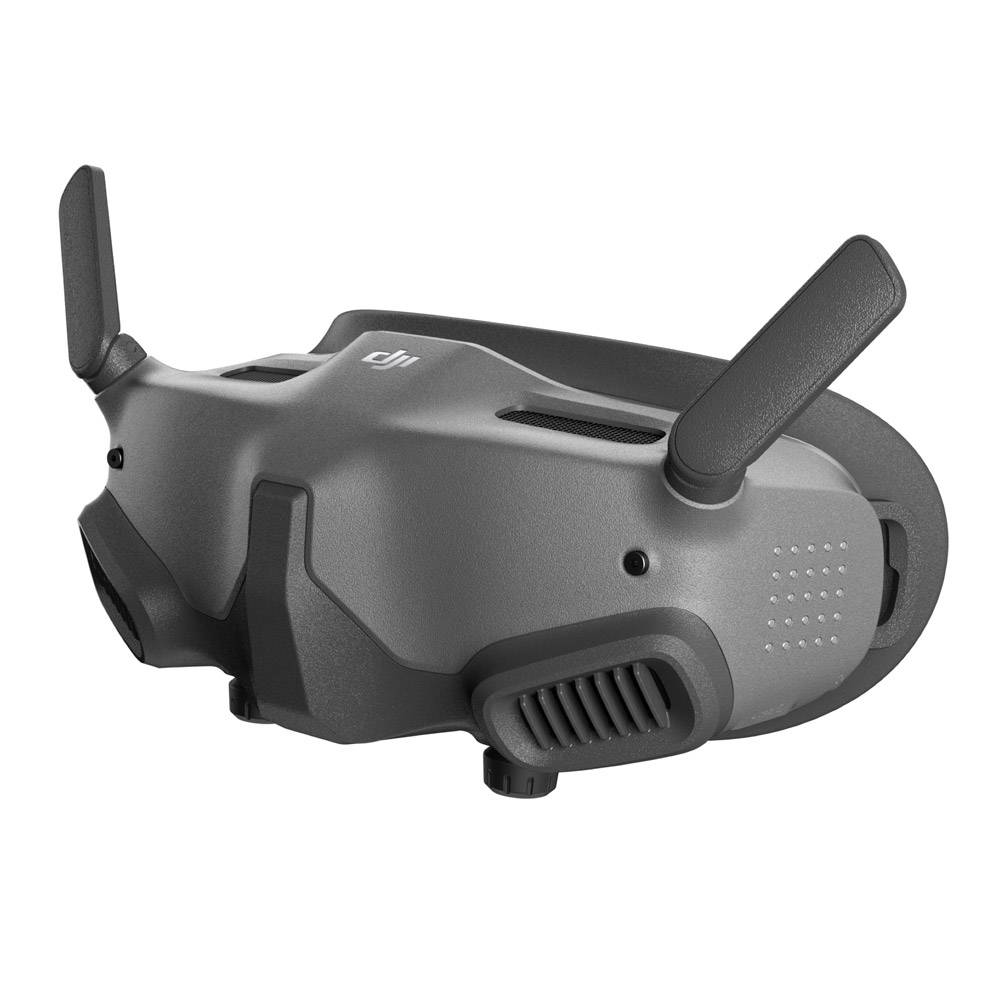

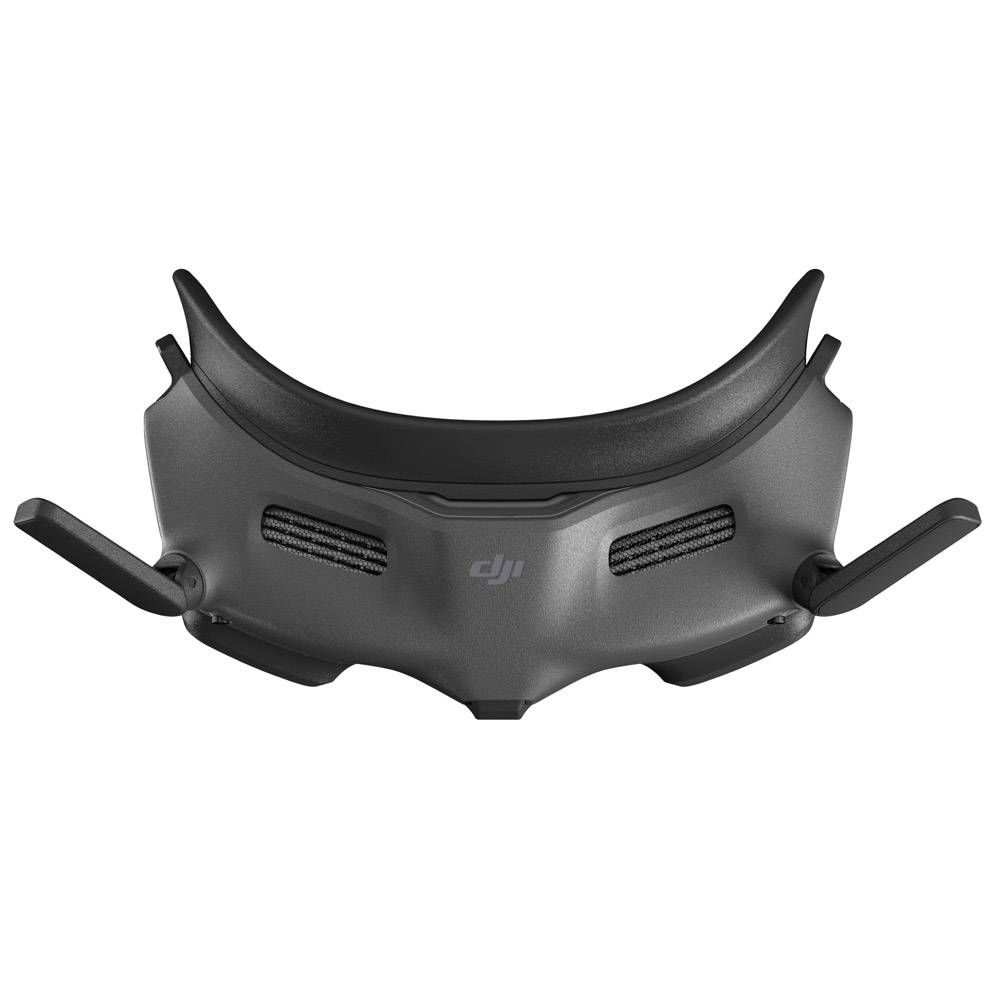

DJI Goggles 2

• Supports MP4 and MOV Video and Audio Playback Formats
• Smaller, Lighter, and More Comfortable
• Two Micro-OLED Screens
• 2 Hour Battery Time
• Diopter Adjustment
• DJI Goggles 2
• 51 FOV

GET IN THE PILOT'S SEAT

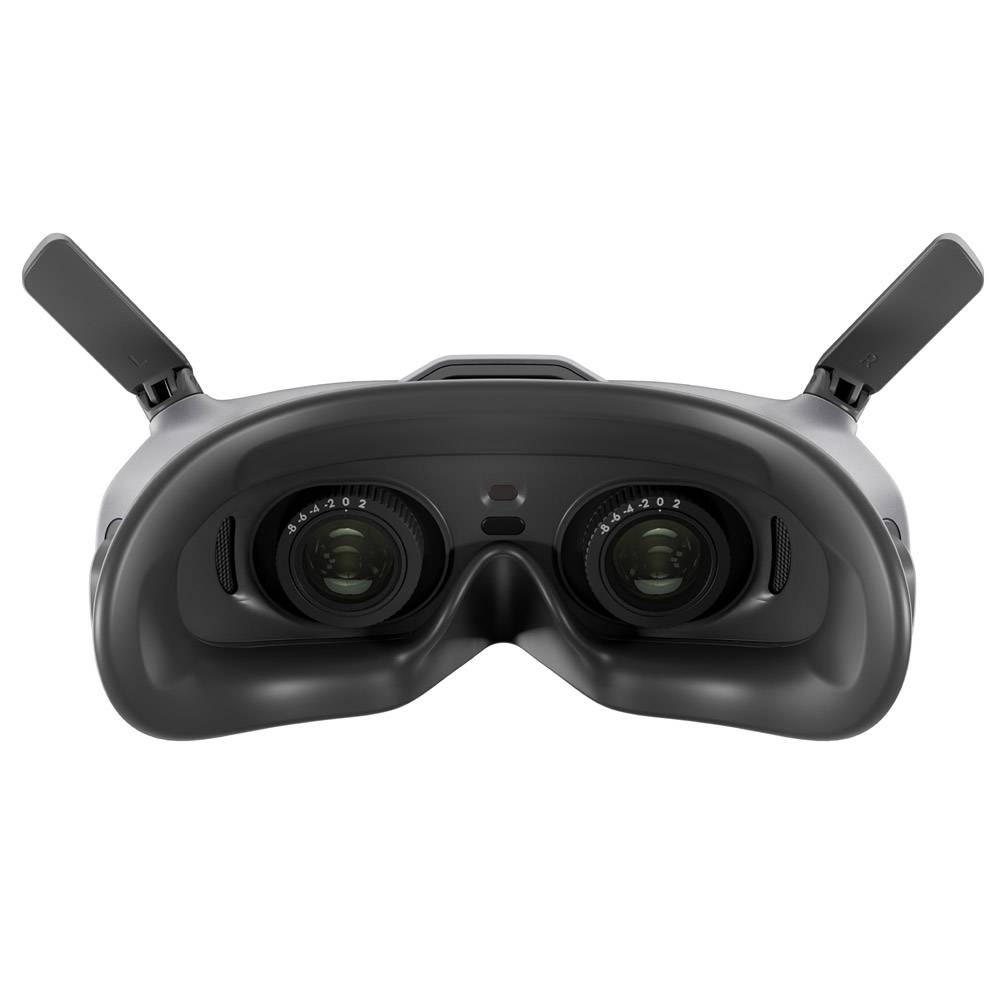

DIOPTER ADJUSTMENT

DJI Goggles 2 offer diopter adjustment from +2.0 D to -8.0 D for optimized viewing and comfort. Lock the adjustment knob to fix the diopter in place and prevent accidental touches during use or storage.

DJI GOGGLES 2

• Supported Video and Audio Playback Formats: MP4 and MOV (video coding formats: H.264 and H.265; audio format: ACC, PCM)
• Wi-Fi Transmission Power (EIRP)
  • 2.4 GHz: < 20 dBm (FCC/CE/SRRC/KC)
  • 5.1 GHz ^[8]: < 20 dBm (FCC/CE/KC)
  • 5.8 GHz ^[4]: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)
• Transmission Power (EIRP):
  • 2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
  • 5.8 GHz: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
• Operating Temperature Range: -10° to 40° C (14° to 104° F)
• Bluetooth Communication Frequency: 2.400-2.4835 GHz
• Wi-Fi Wireless Streaming: Supports DLNA Protocol
• Bluetooth Transmission Power (EIRP): < 8 dBm
• Supported SD Cards: microSD (up to 256 GB)
• Max Video Transmission Bitrate: 50 Mbps
• Wi-Fi Communication Frequency:
  • 2.400-2.4835 GHz
  • 5.150-5.250 GHz (indoor use only)
  • 5.725-5.850 GHz
• Wi-Fi Protocol: Wi-Fi 802.11b/a/g/n/a
• Power Input: DJI Goggles 2 Battery
• Bluetooth Protocol: Bluetooth 5.2
• Video Recording Format: MOV
• Communication Frequency
  • 2.400-2.4835 GHz
  • 5.725-5.850 GHz
• FOV (single screen): 51

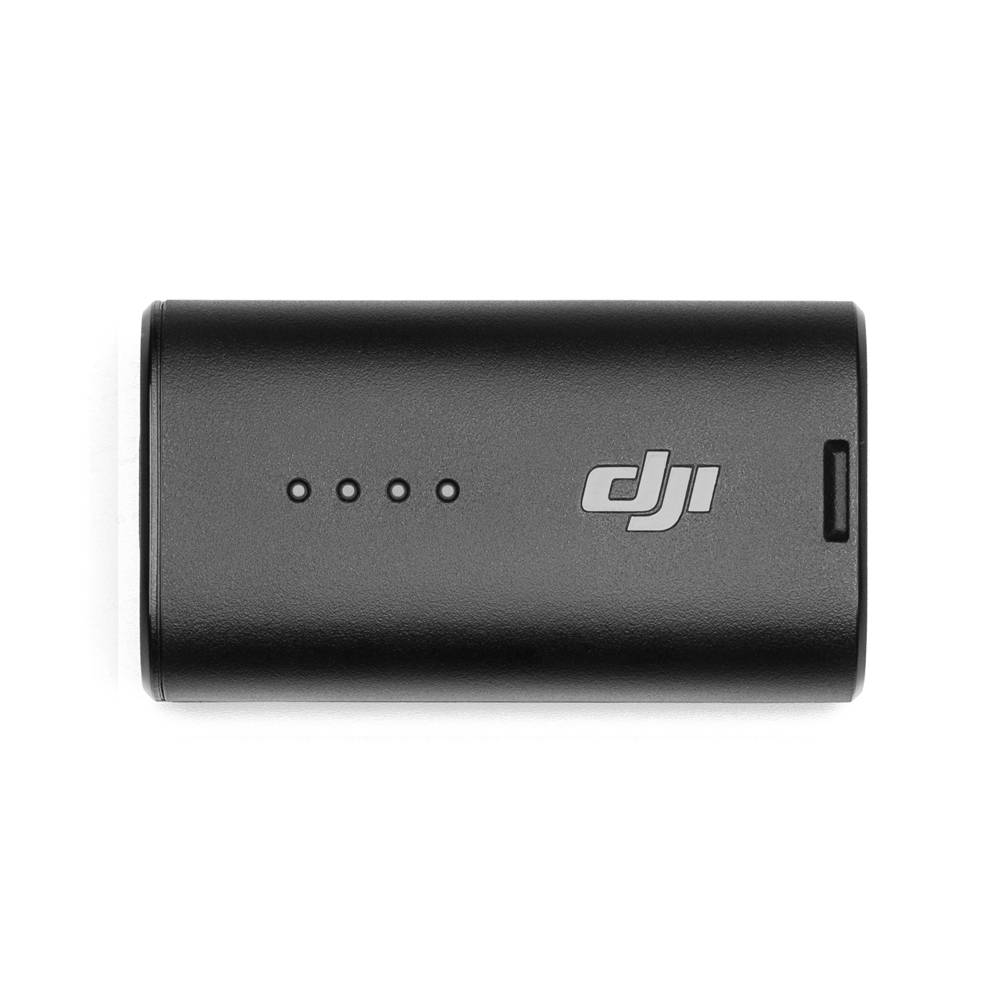

DJI GOGGLES 2 BATTERY

• Charging Temperature Range: 70° to 45° C (32° to 113° F)
• Max Charging Power: 712.6 W (5 V/2 A, 9 V/1.4 A)
• Dimensions (L×W×H): 73.04×40.96×26 mm
• Operating Time: Approx. 2 hours
• Chemical System LiNiMnCoO2
• Weight: Approx. 122 g
• Voltage: 7-9 V (1.5 A)
• Capacity: 1800 mAh
• Energy: 18 Wh
• Type: Li-ion

IMPORTANT NOTES

• HorizonSteady is only available in Normal mode FOV with an aspect ratio of 16:9 and the video recording specification of 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps. RockSteady is unavailable when the video recording specification is 2.7K@100/120fps or 1080p@100/120fps.
• The 155° FOV is only available when the aspect ratio is 4:3, and the video recording specification is 2.7K@50/60fps or 1080p@50fps/60fps; the aspect ratio is 16:9, and the video recording specification is 4K@50/60fps, 2.7K@50/60fps, or 1080p@50/60fps.
• DJI Goggles 2 does not support astigmatism correction. If you have specific vision requirements, please consult your doctor before use.

• The DJI Goggles 2 are not backwards compatible with existing DJI Air unit or Vista systems.

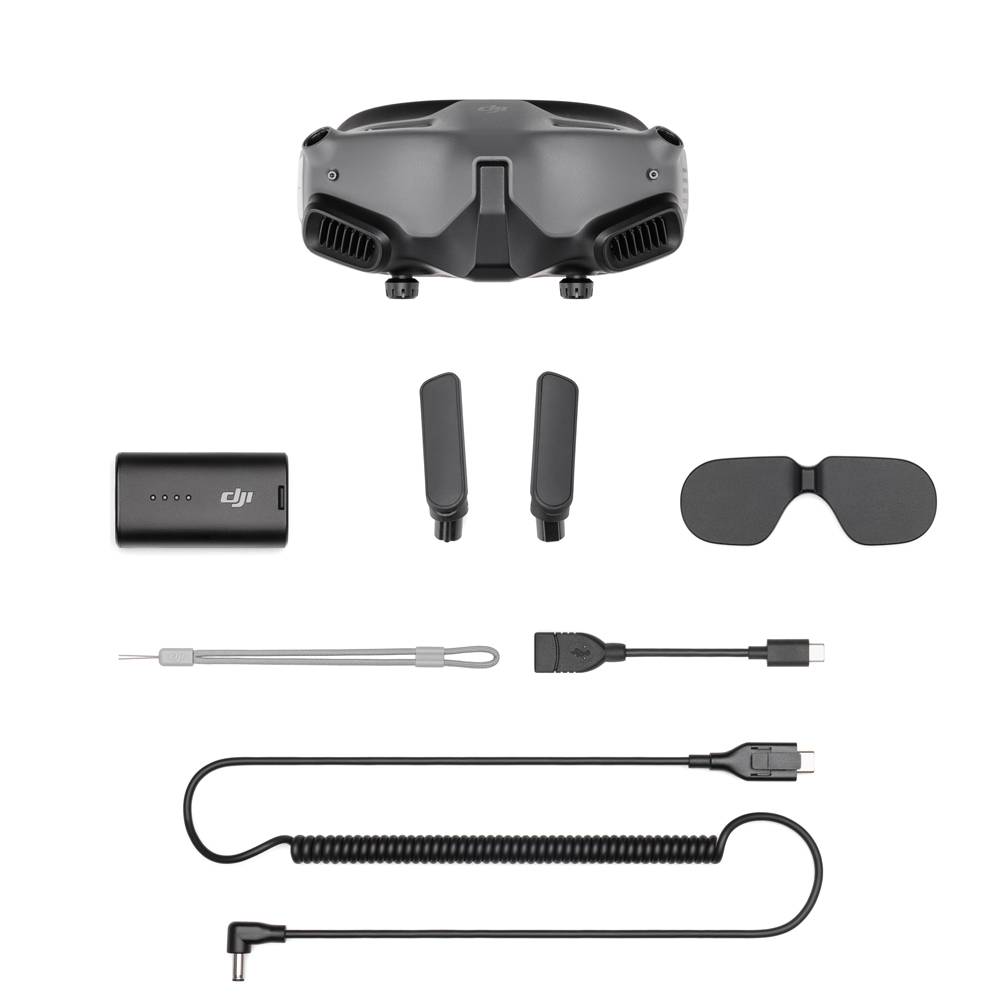

In The Box

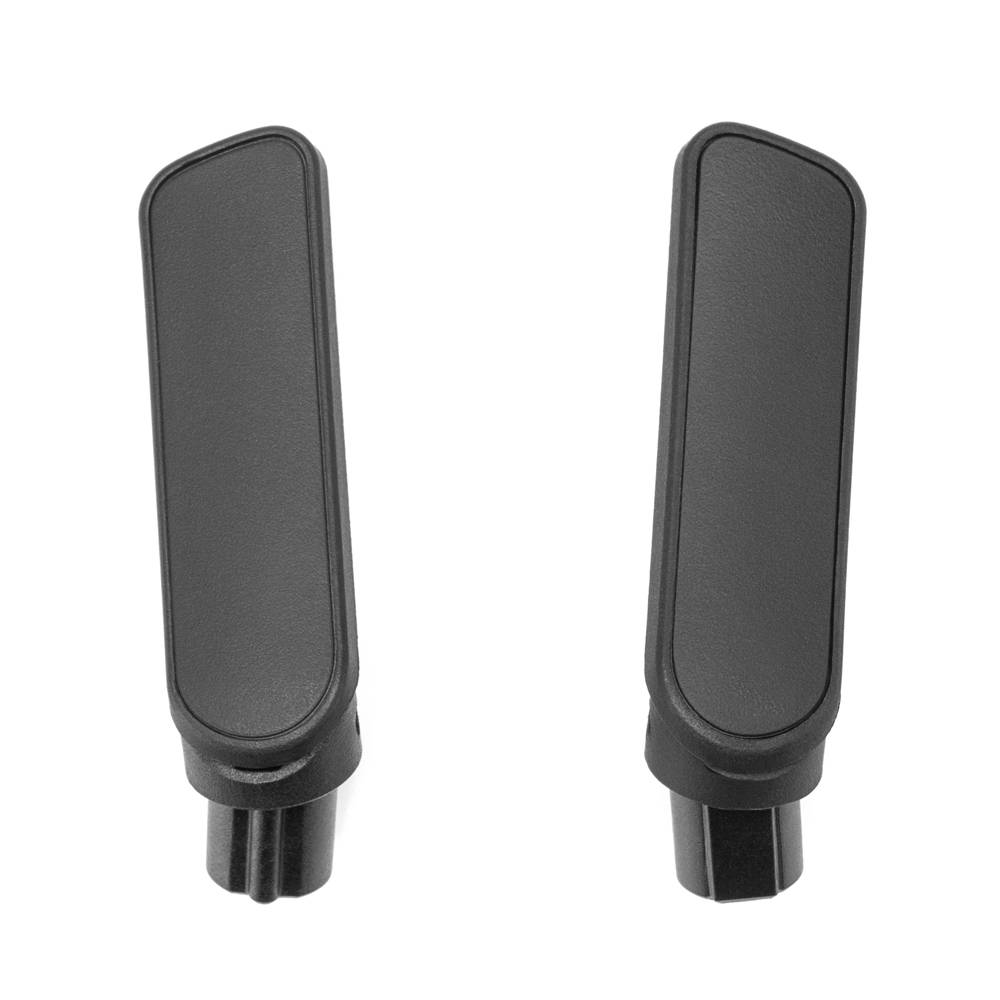

• 1x DJI Goggles 2 Dual-Band Antenna (Set of 2)

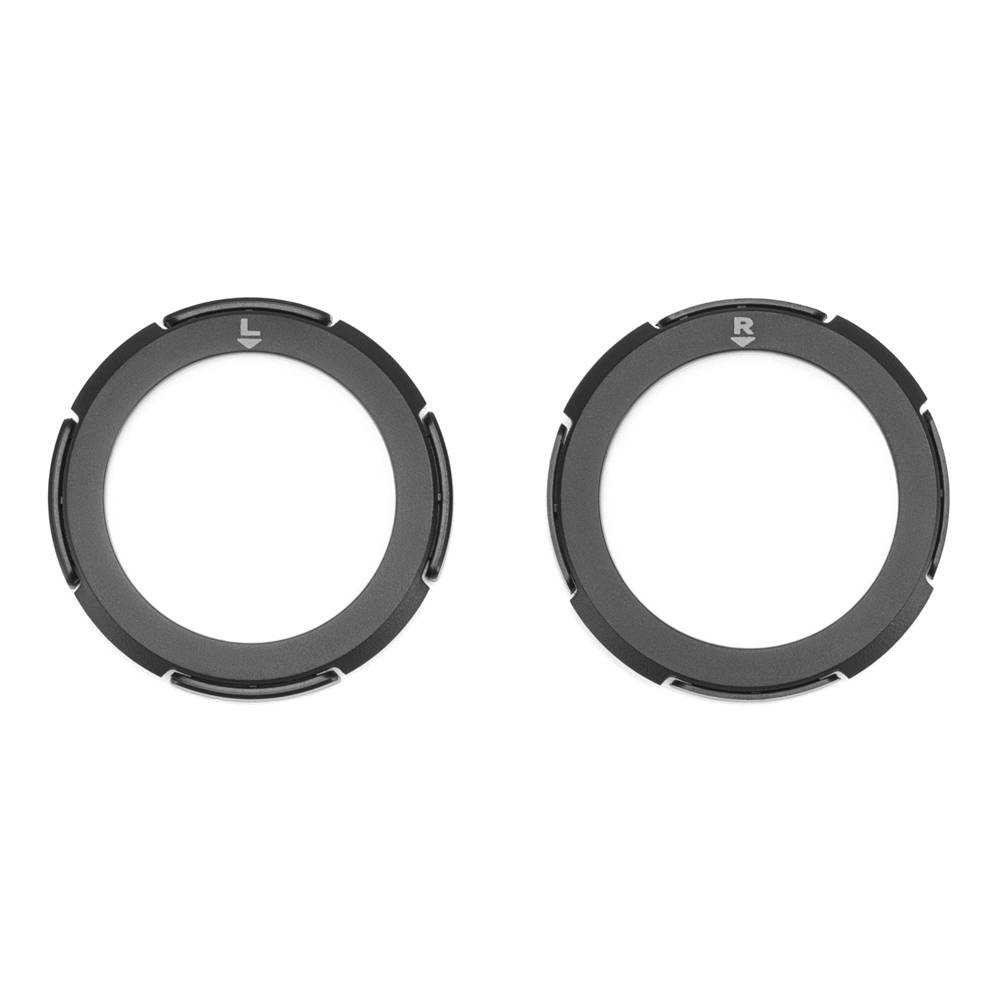

• 1x DJI Goggles 2 Eyeglass Frames (Set of 2)

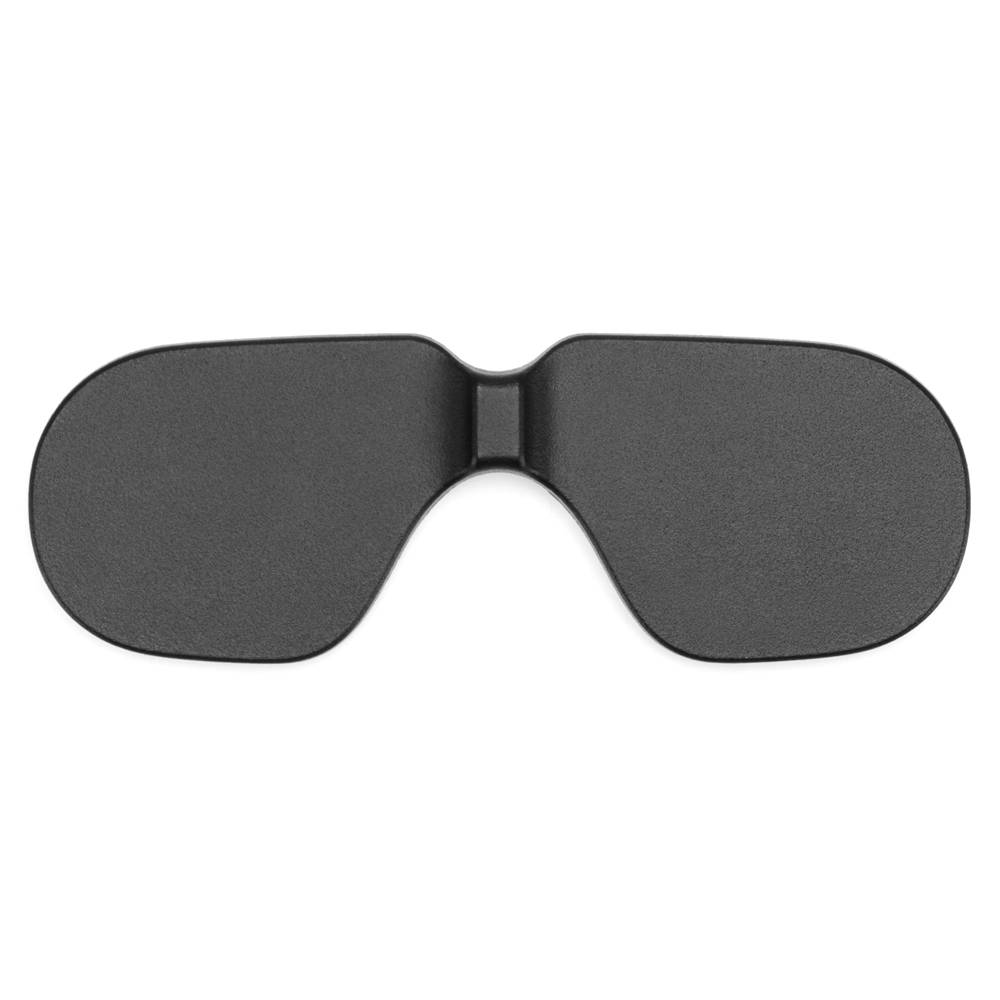

• 1x DJI Goggles 2 Screen Protector

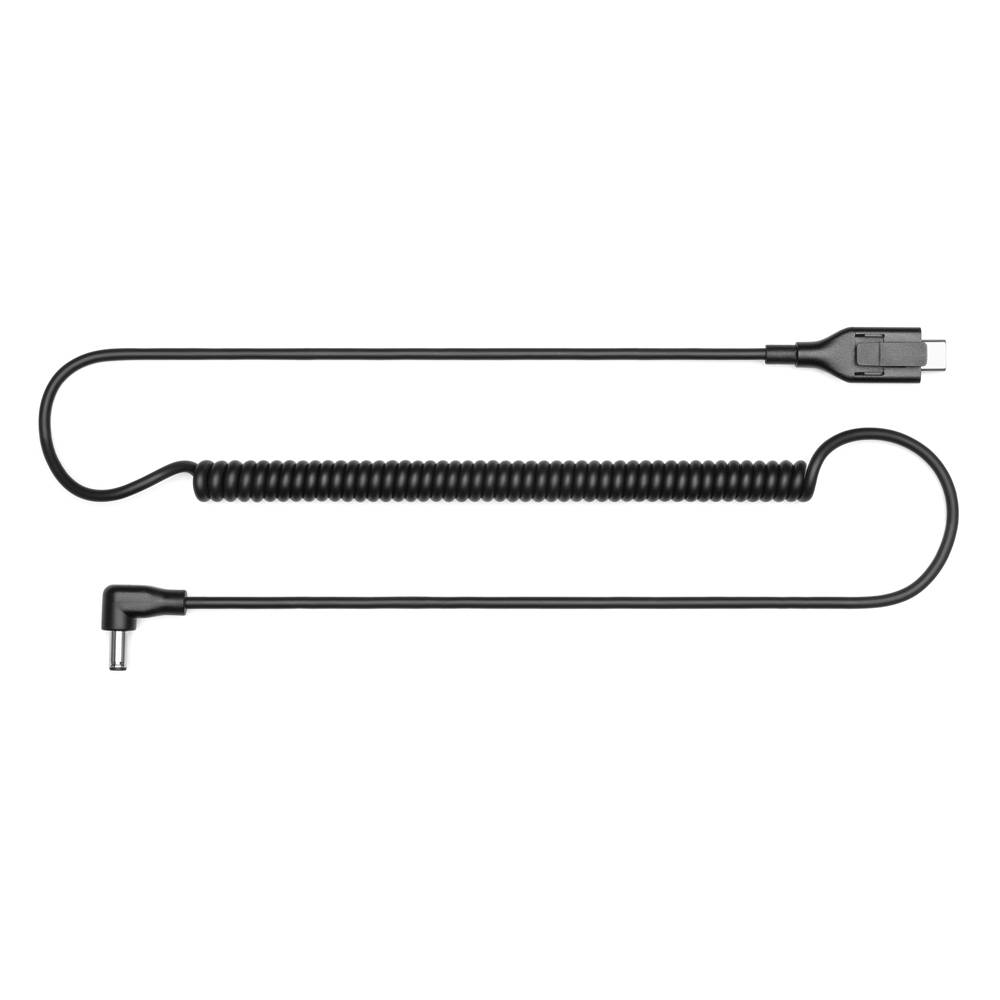

• 1x DJI Goggles 2 Power Cable

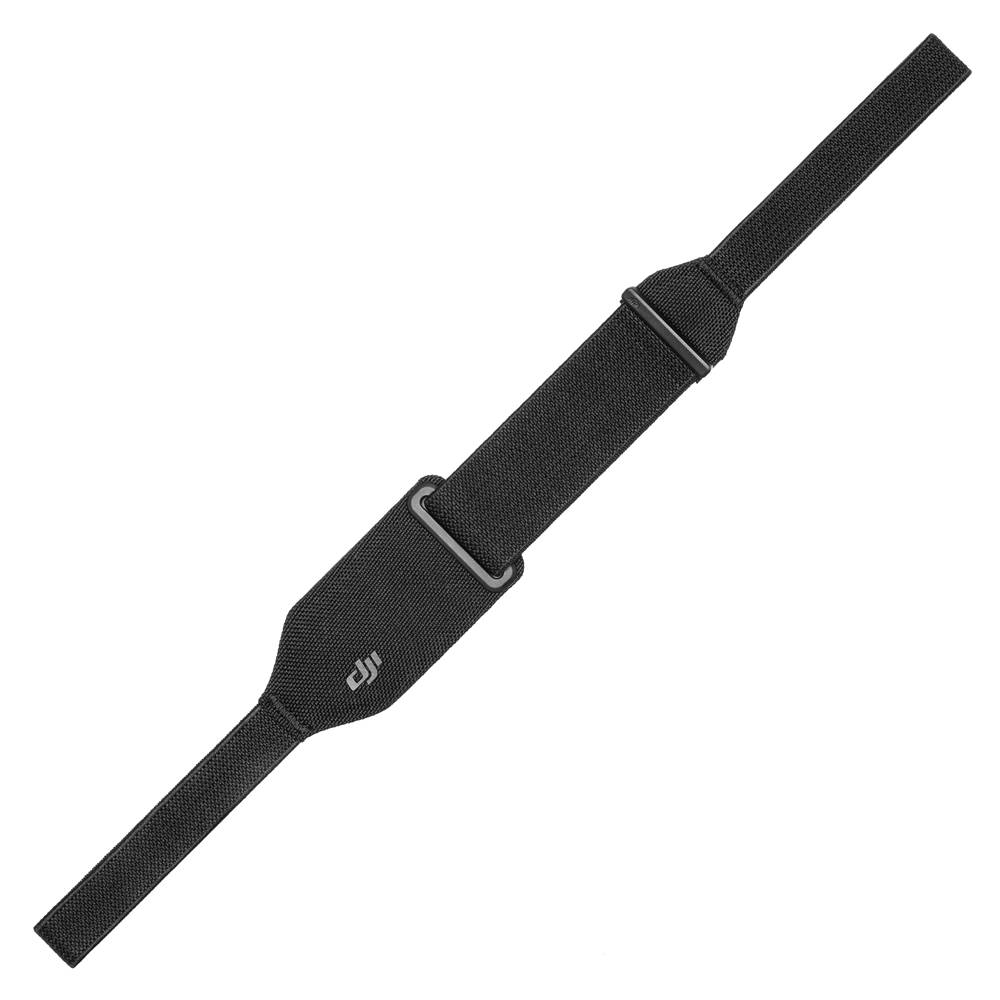

• 1x DJI Goggles 2 Headband
• 1x DJI Goggles 2 Battery
• 1x DJI Goggles 2

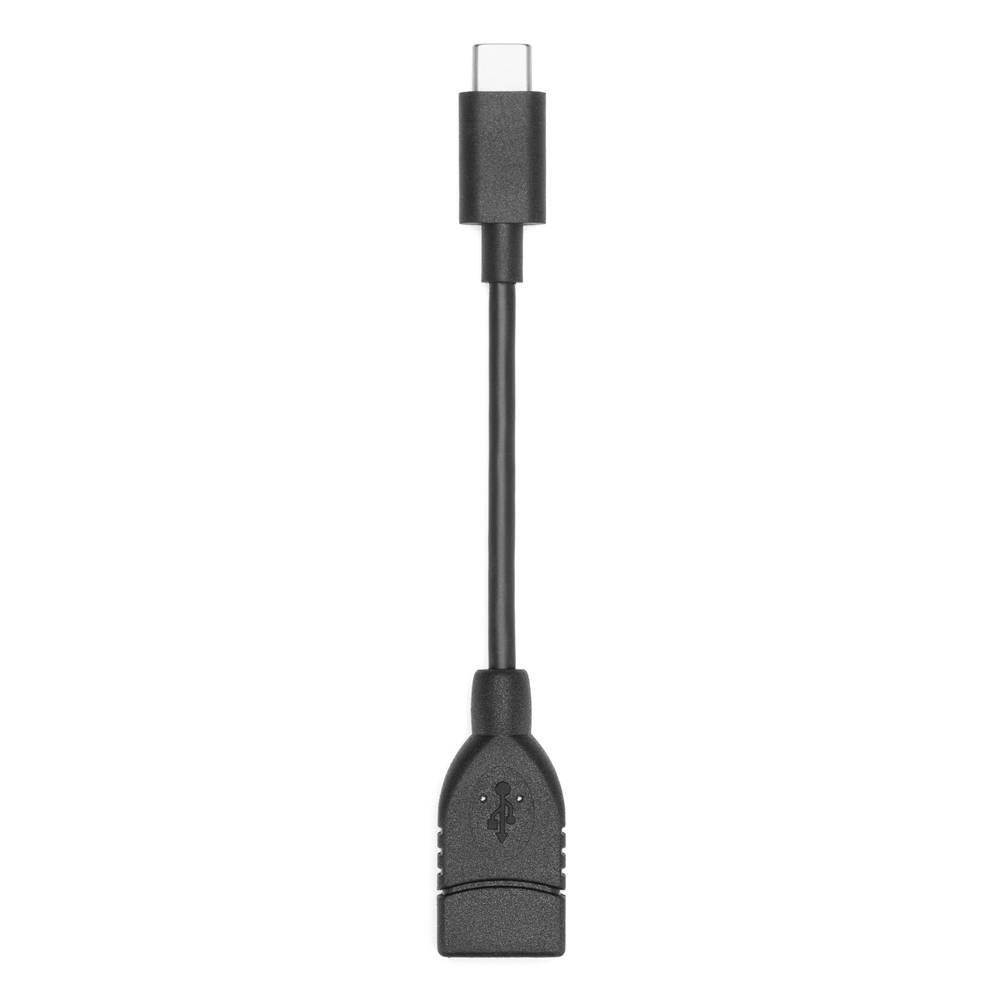

• 1x OTG Cable
