Product Description

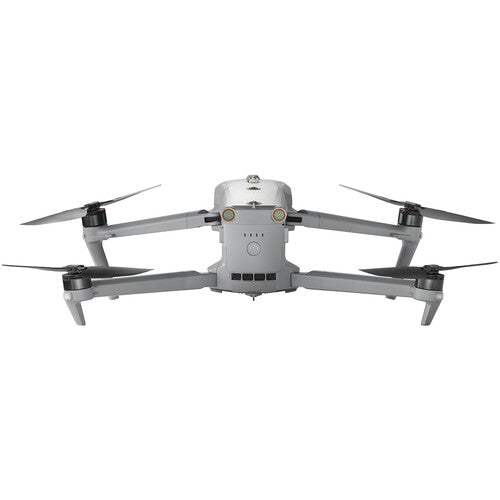

Autel EVO Max 4N Bundle
EVO Max 4N, as a new drone of the EVO MAX series, retains the advantages of the MAX series and introduces new innovations, the most special is the Starlight Camera. It can also be said that the biggest difference between EVO Max 4N and EVO Max 4T lies in the difference of the gimbal and camera.
As a drone of the EVO MAX series, EVO MAX 4N retains the following functions and the ability to perform tasks.
- No blind spots: 720° omnidirectional obstacle avoidance
- Triple anti-jamming capability: RFI, EMI, and GPS
- Semi-autonomous tasks: Auto Path Finding, Navigation in GPS Denied Environment, Accurate Object Identification and Tracking
- A-Mesh 1.0: The Industry's First Mesh Networking
- Autel Skylink 3.0 transmission technology: maximum Image Transmission Distance of 12.4 miles
- Mission Ready Payload: the gimbal camera has multiple payloads, and there are also replaceable interfaces on the top of the fuselage
- Autel Enterprise App Platform
- Multiple Mission Types: Polygon Mission, Terrain Follow, Rectangular Mission, Automatic Mission Generation And Data Capture, Waypoint Missions, Oblique Photography, Spiral Mission, Vertical Scan, Corridor Mission
- Enhanced Live-View: Multi-channel Projection Screen, AR Scene
- Smart Features: 3D Map Planning, Quick Mission, Mission Reproduction.
- Data Security: Data* can only be physically accessed via the aircraft locally, and can be encrypted using AES-256 and passwords.
- Operating Environment: IP43, -4℉ to 122℉
- Complete Remote Operations System: Used with the EVO Nest
- Autel SDK: Mobile SDK
- Accessories: Autel Smart Controller V3, Live Deck 2 (optional), EVO Nest (optional), RTK Module (optional)
Highlights of EVO MAX 4N

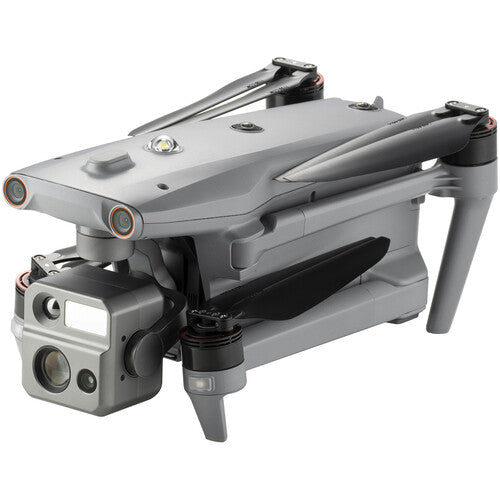

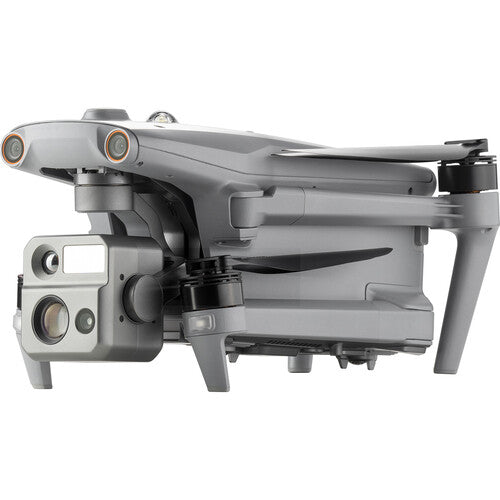

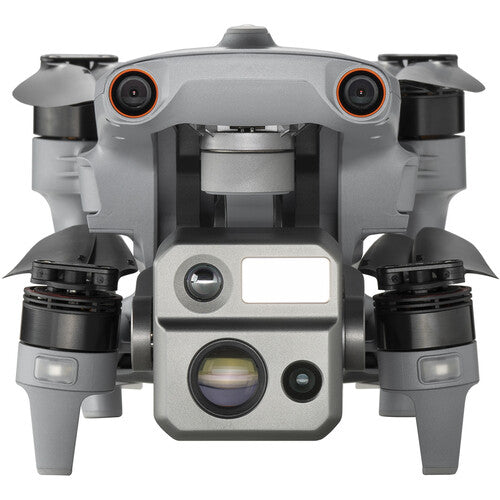

The gimbal camera of EVO MAX 4N integrates Starlight Camera, Wide Camera, Thermal Camera, Laser Rangefinder. Use the EVO MAX 4N Starlight camera to explore the night with targets locked and tracked.
EVO Max 4N Starlight Camera Specifications
- 2.3MP
- LUX: 0.0001, ISO: 450000
- Equivalent: 41.4mm
The EVO MAX 4N is a powerful semi-autonomous drone with clear night-time imaging capabilities and the ability to use thermal imaging.
Autel EVO MAX 4T VS MAX 4N Camera Specs
Semi-autonomous drone EVO MAX series In order to achieve a comprehensive perception of the environment, the EVO Max series uses a powerful camera system - FUSION Light Camera.
Specs
Performance
Camera
Second Camera
Third Camera
Gimbal
Flight Control System
Vision/Sensing System
Remote Controller / Transmitter
Flight Battery
General
| Maximum Horizontal Speed | 51.4 mph / 23 m/s |
| Maximum Ascent Speed | 17.9 mph / 8 m/s |
| Maximum Descent Speed | 13.4 mph / 6 m/s |
| Maximum Wind Resistance | 27 mph / 12.1 m/s |
| Flight Ceiling | 4.3 Miles / 7000 m |
| Maximum Flight Time | 42 Minutes |
| Maximum Hover Time | 38 Minutes |
| Maximum Tilt Angle | 35° |
| Hovering Accuracy | Vision Positioning Vertical: ±0.3' / 0.1 m Horizontal: ±0.49' / 0.15 m GNSS Vertical: ±1.0' / 0.3 m Horizontal: ±1.0' / 0.3 m RTK Vertical: ±0.49' / 0.15 m Horizontal: ±0.3' / 0.1 m |
| Maximum Angular Velocity | 300°/s (Pitch) 120°/s (Yaw) |
| Image Sensor | Size-Unspecified CMOS |
| Sensor Resolution | Effective: 2.3 Megapixel |
| Focal Length | 41.4mm (35mm Equivalent) |
| Field of View | 52° |
| ISO Sensitivity | Photo/Video 100 to 450,000 in Auto Mode |
| Internal Recording Modes | 1920 x 1200 |
| Video Format | 1920 x 1200 (MP4) |
| Broadcast Resolution | None |
| Still Image Support | JPEG (1920 x 2001) |
| Media/Memory Card Slot | None |
| Photo Modes | Burst Shooting, Single Shot |
| Camera Type | Thermal |
| Lens | Sensor: Uncooled VOx Microbolometer FOV：61° Focal Length: 9.1 mm Aperture: f/1.0 Focusing Distance: 7.2' / 2.2 m |
| Temperature | Measurement Accuracy: +/-3% of Readign (Using the Larger Value) at Ambient Temperature Range from -4° F to 140° F (-20° C / -60° C) Measurement Method: Center, Pot, and Rectangular Measurement Range: -4° to 302° F and 32° to 1022° F / -20° C to 150° C and 0 to 550° C Temperature Alert: High and Low Temperature Alarm Thresholds, Reporting Coordinates, and Temperature Values Palette: White Hot/Black, Hot/Searing/Rainbox, Gray, Ironbow, Cold, and Hot |
| Resolution | Video: 640 x 512 at 30 FPS Photo: 640 x 512 |
| Pixel Pitch | 12 um |
| Camera Type | Wide-Angle |
| Sensor | 1/1.28 CMOS Effective Pixels: 50 MP |
| Lens | FOV: 85° Focal Length: 4.5 mm (Equivalent: 23 mm) Aperture: f/1.9 AF Motor: PDAF Focus |
| Exposure Compensation | ±3 EV 0.3EV / step |
| ISO Range | Auto Photo: ISO 100 to ISO 6400 Video: ISO 100 to ISO 64,000 (Night Scene Mode: up to ISO 64,000) Manual Photo: ISO 100 to 12,800 Video: ISO 100 to 6400 |
| Shutter Speed | Photo: 8 Seconds to 1/8000 Seconds Video: 1 Second to 1/8000 Seconds |
| Resolution | Maximum Video: 3840 x 2160 Photo Size: 4096 x 3072 |
| Number of Axes | 3-Axis (Pitch (Tilt), Roll, Yaw (Pan)) |
| Rotation Range | Mechanical Range Yaw (Pan): 180° (-135 to 45°) Pitch (Tilt): 90° (-45 to 45°) Roll: 90° (-45 to 45°) Controllable Range Pitch (Tilt): 120° (-90 to 30°) |
| Follow Speed | Tilt: 200°/s |
| Stabilization Accuracy | ±0.005° |
| GNSS Support | GPS, GLONASS, BeiDou, Galileo |
| Vision System | Downward / Upward / Forward / Backward / Left / Right |
| Vision System Capabilities | Forward Measurement Range: 0.7 to 164.0' / 0.2 to 50 m Field of View: 60° (Horizontal) / 80° (Vertical) Backward Measurement Range: 0.7 to 164.0' / 0.2 to 50 m Field of View: 60° (Horizontal) / 80° (Vertical) Lateral Measurement Range: 0.7 to 164.0' / 0.2 to 50 m Field of View: 60° (Horizontal) / 80° (Vertical) Upward Measurement Range: 0.7 to 164.0' / 0.2 to 50 m Field of View: 360° (Horizontal) / 190° (Vertical) Downward Measurement Range: 0.7 to 164.0' / 0.2 to 50 m Field of View: 360° (Horizontal) / 190° (Vertical) |
| Operating Frequency | 2.4 GHz (2.400 to 2.4835) 5.1 GHz (5.150 to 5.250) 5.8 GHz (5.725 to 5.850) |
| Maximum Operating Distance | 12.4 Miles / 20.0 km |
| Transmitter Power | 23 dBm (2.4 G) 17 dBm (5.1 G) 22 dBm (5.8 G) |
| Battery Type | 1 x Built-In |
| Battery Chemistry | Lithium-Ion |
| Battery Capacity | 5800 mAh |
| Wi-Fi | Wi-Fi 5 (802.11ac) (2 x 2) |
| Bluetooth | None |
| Mobile App Compatible | No *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
| Built-In Display Size / Type | 7.9" / LCD |
| Display Resolution | 2048 x 1536 |
| Display Brightness | 2000 nits / cd/m2 |
| Operating Temperature | -4 to 104°F / -20 to 40°C |
| Battery Chemistry | Lithium-Ion Polymer (LiPo) |
| Battery Capacity | 8070 mAh / 120 Wh |
| Battery Configuration | 4 S / 14.88 V |
| Charging Temperature | 41 to 113°F / 5 to 45°C |
| Weight | 1.1 lb / 520 g |
| Rotor Configuration | 4 |
| Operating Temperature | -4 to 122°F / -20 to 50°C |
| Diagonal Size | 1.5' / 464 mm |
| Overall Dimensions | 22.7 x 5.9 x 26.0" / 576.0 x 149.0 x 660.0 mm (Folded) 10.1 x 5.2 x 5.4" / 257.0 x 133.0 x 136.0 mm (Unfolded) |
| Weight | 3.5 lb / 1600 g (WithBattery, Gimbal) |

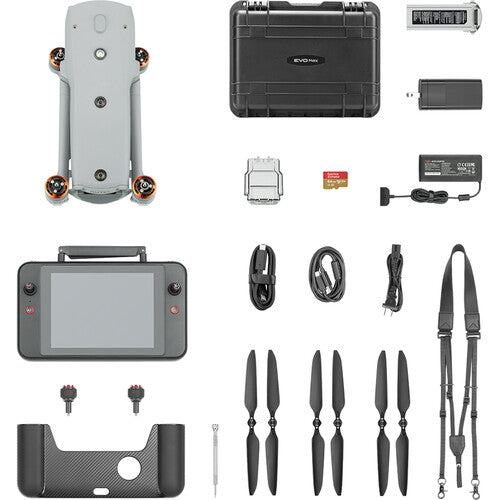

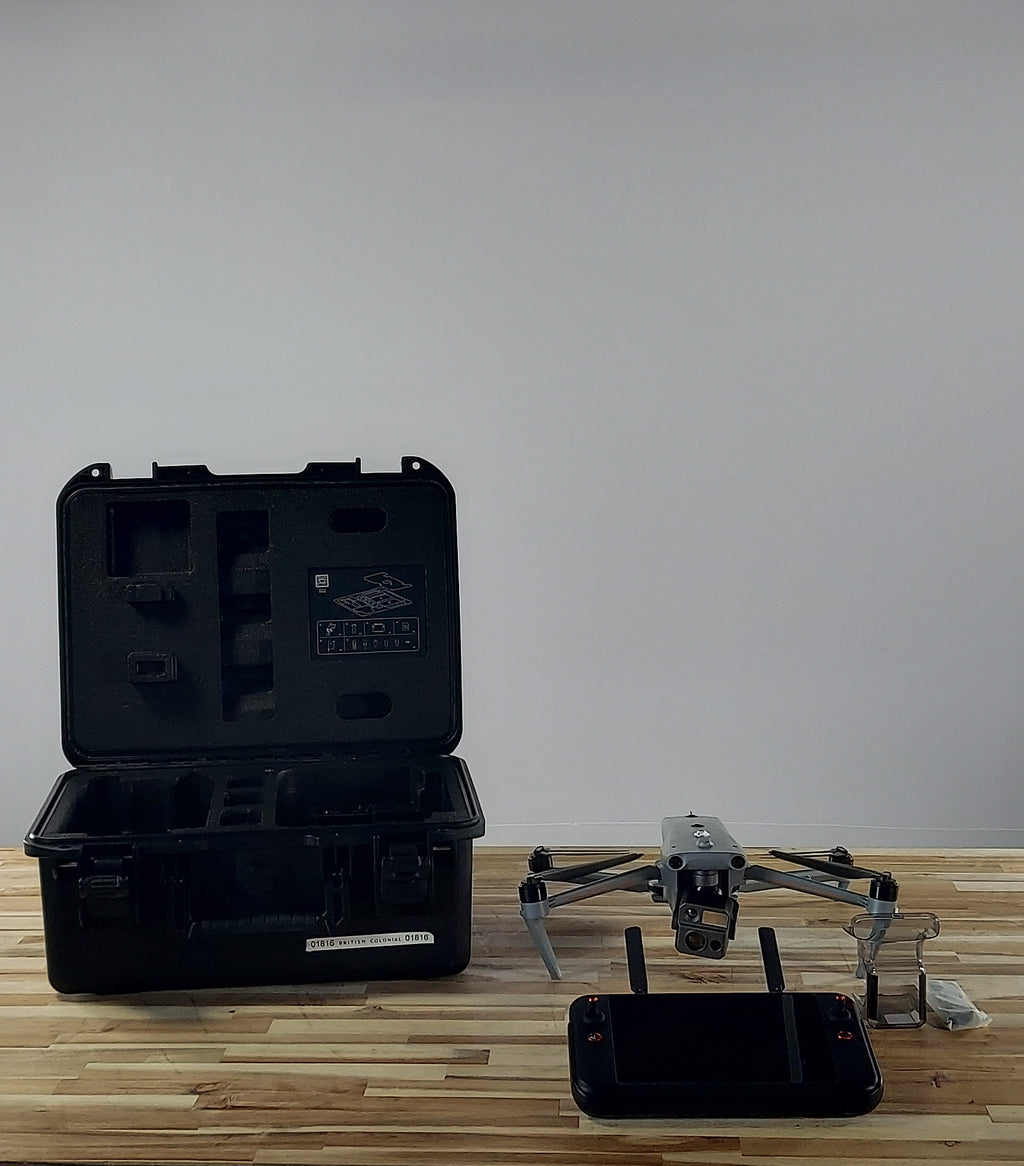

In the Box
- Autel Robotics EVO Max 4N Industrial Drone
- Autel Robotics EVO Max Battery
- Autel Robotics Smart Controller V3 for EVO II V3 Drones

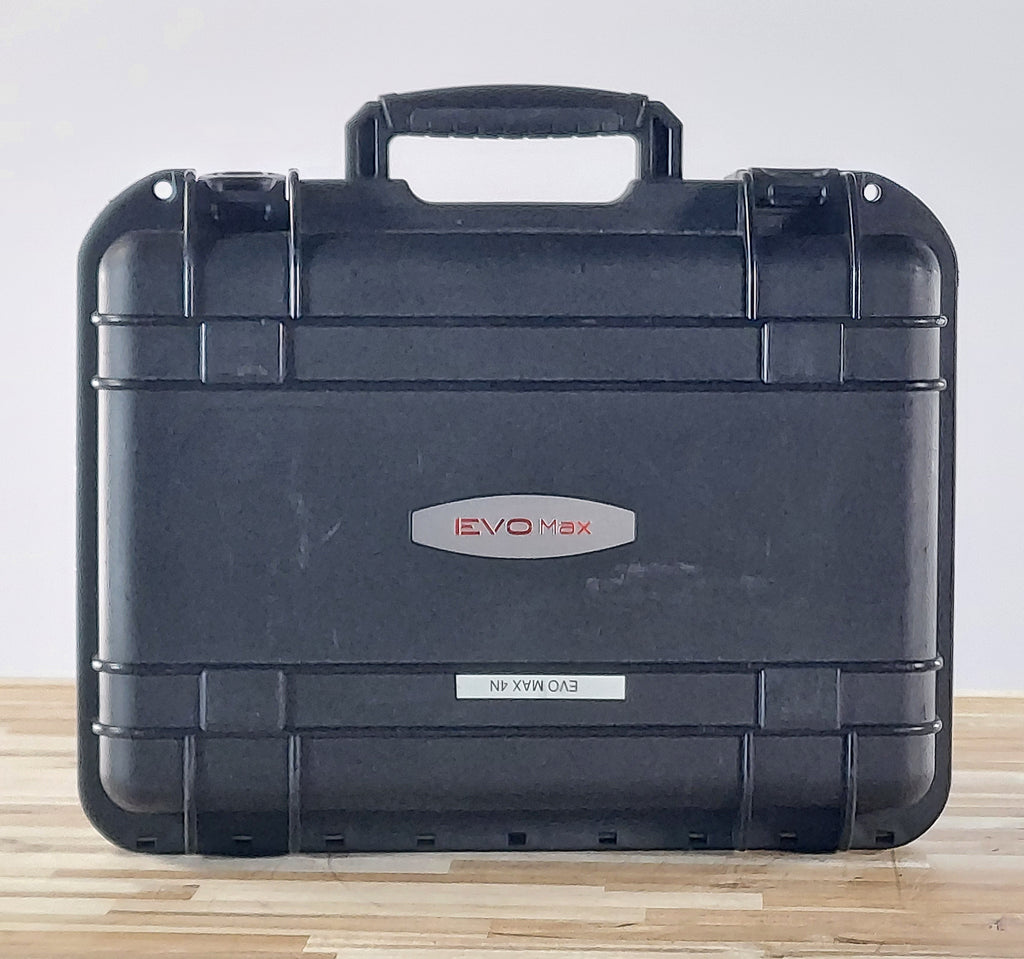

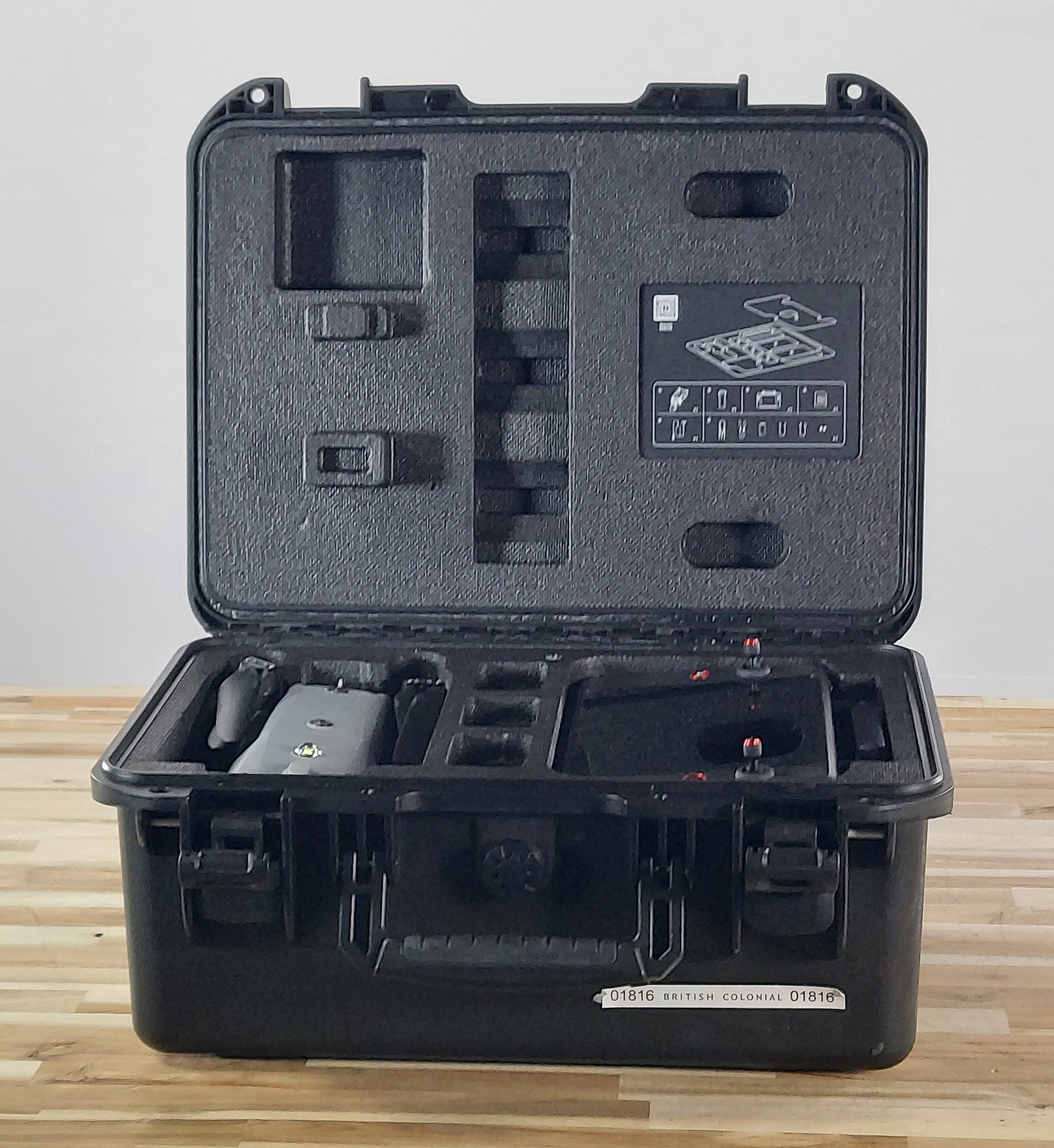

- Rugged Case
- 64GB SD Card
- Autel Robotics Propellers for EVO Max (Pair)
- Autel Robotics EVO Max Charger & Cable
- Smart Controller Lanyard
- Smart Controller Cover
- Spare Joystick for Smart Controller
- RC Charger
- RC Charger Cable
- Autel Robotics EVO Max Gimbal Cover
- Data Cable
- Screwdriver
- Limited 1-Year Manufacturer Warranty
