Professional Remote ID device attachable to any drone
Designed with expert pilots in mind. Combination of both Network & Direct / Broadcast Remote ID to make your drone flight safe & compliant.Remote Identification
Network Remote Identification
Dronetag Mini transfers your drone's position and identification to our cloud. By displaying the real-time data in our app Dronetag enables advanced drone operations and coordination of manned and unmanned traffic in the same airspace.
Direct (Broadcast) Remote Identification
Your drone's info is transmitted via Bluetooth to up to 3 km (1.86 miles). With our Direct Remote ID, you fulfil all the new regulation necessities, and you are free to fly & touch the sky!

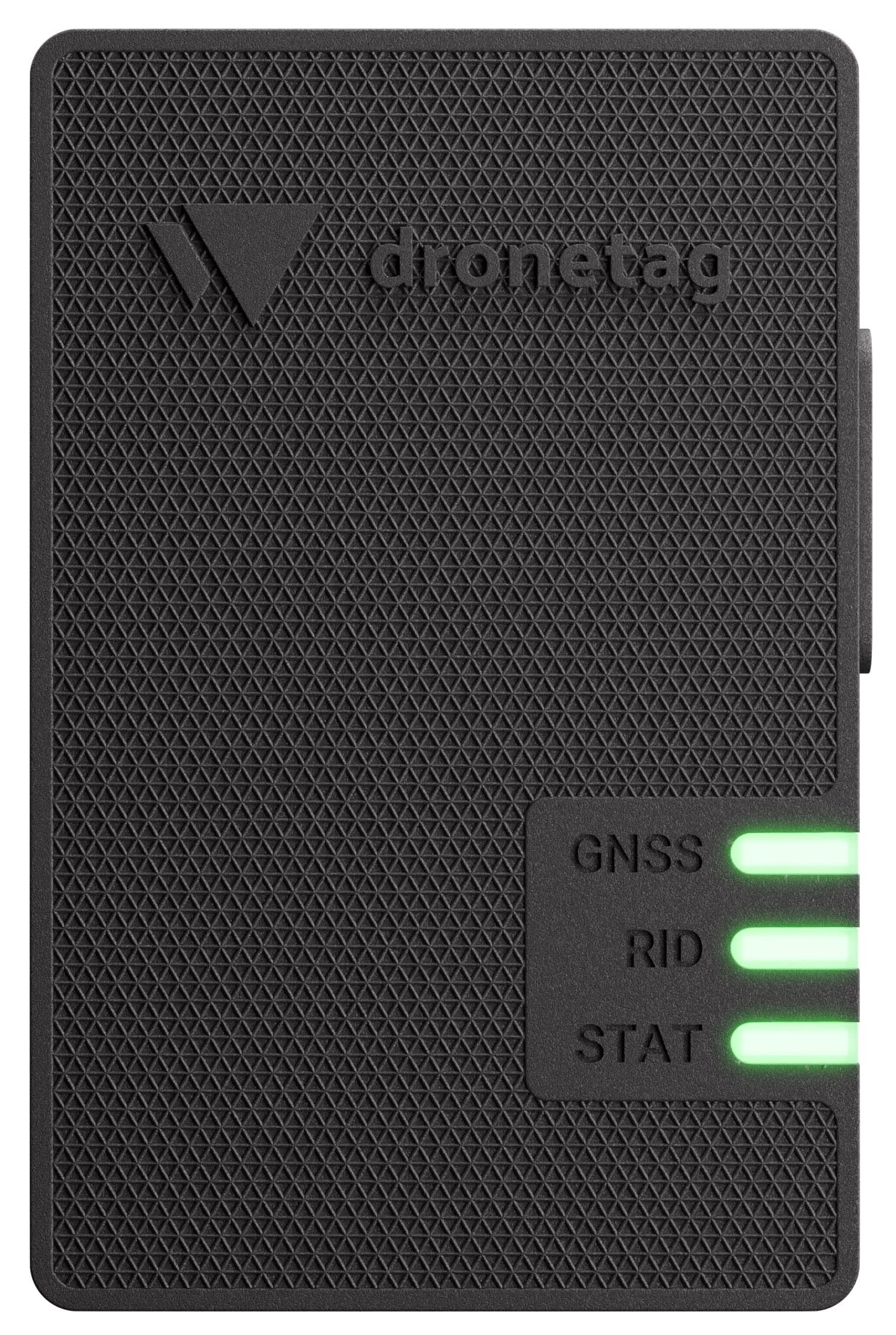

Smallest and lightest
Dronetag Mini is the smallest and lightest Remote ID device on the market

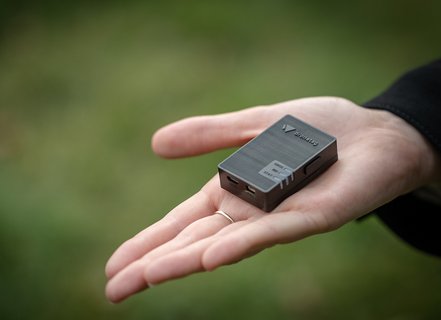

With the half size of a muesli bar, the weight of 32 g (1.1 oz), it offers everything you need to fly safe & compliant.
Independent, locked and with the longest battery life

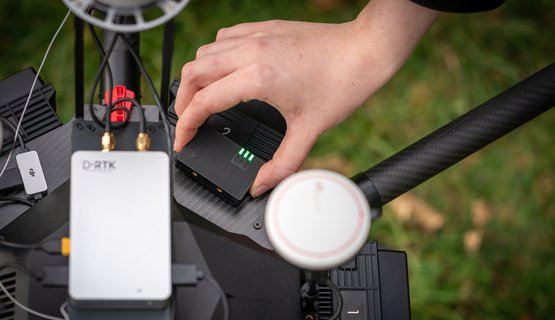

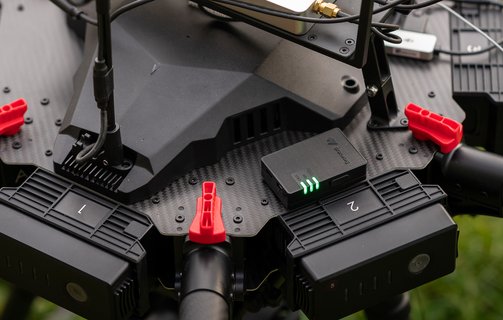

Mini is attachable to any drone with a strong reclosable dual lock fastener (you can lift average drone by it). The device has internal GNSS, LTE and Bluetooth antennas and offers up to 14 hours of battery life.
Available on all devices

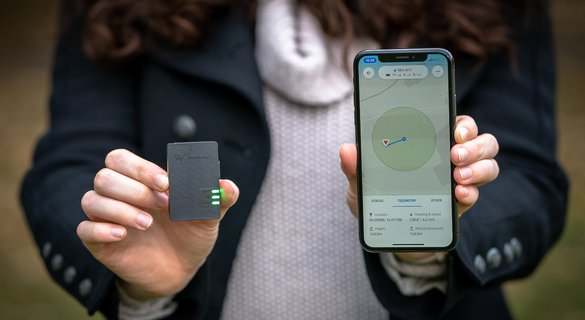

Dronetag App allows you to manage your devices, check the airspace zones, plan your flights, inspect airborne drones & flight plans and notify you about any airspace hazards.
-
Security at its best
Soldered chip SIM, firmware over the air updates, or DTLS encryption got you safe & secured.
-
Multi constellation GNSS receiver
Receiving signals from GPS, GLONASS, Galileo and SBAS for robust and reliable positioning.
-
Built according to the newest Remote ID standards
Compliant with Direct & Network Remote ID according to the prEN 4709-002 and ASTM F3411 Standards.
-
Internal LTE, Bluetooth and GNSS antennas
With an option to add external LTE and Bluetooth antennas for better signal reception.
-
Battery with up to 14 hours of endurance
You can also use your drone as a power source for carefree flights without the need for charging.
-
Take-off, landing and free-fall detection
Worry-free flight start and end. Mini warns other closed-by pilots about potential dangers.
-
Multiple sensors onboard
GNSS position estimation, pressure altitude measurement and motion detection via accelerometer.
-
MAVlink & DJI A3 support
Professional DJI and Pixhawk flight controllers integration via our EXT port to get onboard data.
What is Remote ID and why do I need it?
Remote Identification (Remote ID), means that other parties can receive basic information about airborne drones digitally (in a similar way to general aviation). The example data that Remote ID drones transmit wirelessly during flight is the operator's registration number, drone serial number, and current position.
Europe and US are currently leading the way with the rest of the world following their trajectory. Remote ID aims to enable organized management of drone operations to ensure safe airspace.
What is the difference between the Direct and Network Remote ID?
There are two types of Remote IDs. The first is Direct (in some countries called Broadcast) Remote ID (DRI), in which the drone broadcasts data directly to nearby entities ranging from hundreds of meters to a few kilometers. The second type is Network Remote ID (NRI), where the drone sends the data via a cellular network to a central system where it can be accessed by other users.
When do I need DRI and when NRI? Do I need both?
The current European-wide drone regulation requires all drones flying in a Specific category to fulfil the DRI requirements starting 1st July 2022. The technology and protocol are already defined in prEN 4709-002. However, the situation about the NRI mandate is still a bit unclear. All we know is that it will be required to access U-space airspace starting January 2023.
In the USA, the FAA mandates pilots to use DRI modules from September 2023 and drone manufacturers to comply with it (to produce Standard Remote ID drones) starting December 2022.
To sum it up, having both DRI and NRI systems on your drone is better. Dronetag Mini is future-proof and will always fulfill the latest standards.
Can I use my own SIM card?
No. Dronetag Mini has a soldered chip SIM and we manage everything about the connectivity for you. There are very good safety, security and economic reasons for this. Concerning the safety, drone vibrations don't play well with common SIM slots and plastic SIMs. For security, we use our SIMs to authenticate against our cloud so the data we show are guaranteed and couldn't be easily spoofed. Lastly, the IoT cellular networks we use are not easily made available to the public, meaning you won't get the pricing as we have because of our higher demand. Using your own SIM would likely mean you would be locked into a long-term contract.
