Product Description
Wide-Angle Stabilized Video

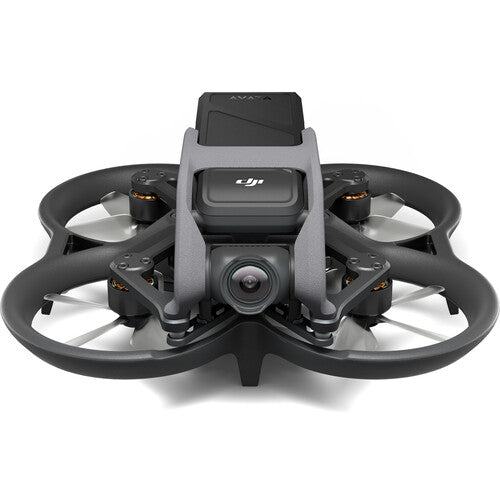

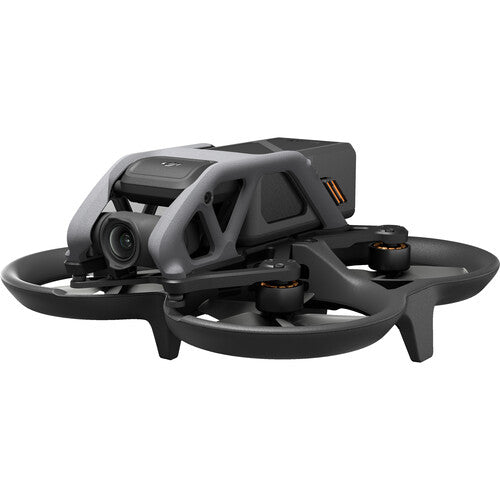

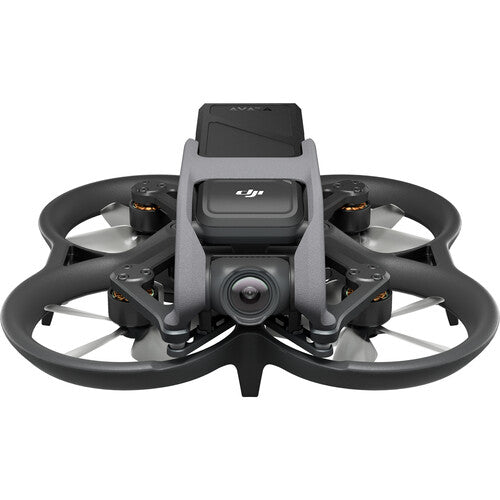

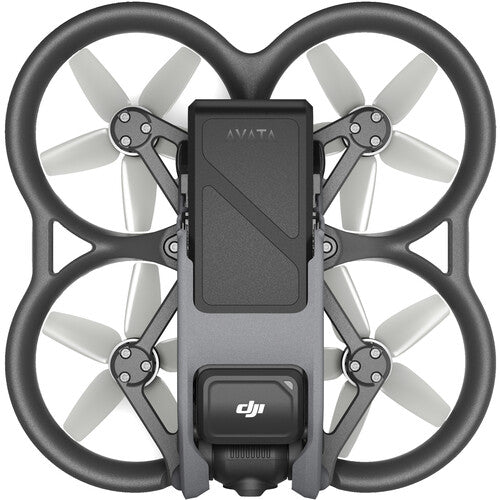

The Avata comes equipped with a 48MP 1/1.7" CMOS sensor, which supports up to 4K video at 100 fps. This footage is shot with an ultra-wide 155° FOV that mimics how we see with our own eyes for a natural and realistic experience. The footage is stabilized in two ways using RockSteady 2.0 EIS and HorizonSteady EIS. RockSteady EIS works to reduce camera shake, while HorizonSteady locks the Avata's footage to a level horizon.O3+ Transmission
Utilizing 2T2R omnidirectional antennas, the Avata can feed your controller or compatible FPV goggles (both not included) with Full HD 1080p video at up to 100 fps, with only a 30 ms latency, and at a 50 Mb/s data transfer rate. The footage is compressed with H.265 to save on storage space when saving videos, and it can be sent from up to 6.2 miles away.Obstacle Sensing

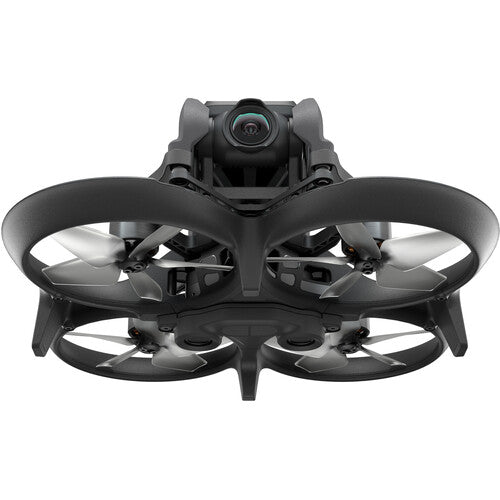

A downward binocular vision sensor and ToF depth sensor work conjunctively to detect obstacles on the ground during flight. This gives pilots the ability to safely fly low-altitude and indoor flights.Turtle Mode
The propeller guards usually let the Avata take a bump and keep on flying, but what if the Avata hits hard enough to fall and land on its back like a turtle? Just activate Turtle Mode with a few taps to have the Avata flip itself right side up and get back to flying.Virtual Flight App
Designed for Windows, iOS 12.0+, and Android 9.0+, this software lets new and experienced pilots practice flying indoors and outside, honing their skills from a variety of preinstalled simulated scenarios.Additional Features
- Shoot in D-Cinelike mode to allow for advanced color grading during post-production
- Ducted aerodynamic design for up to 18 minutes of flight time
- Three speed modes: Normal (up to 17.9 mph), Sport (up to 31.3 mph), and Manual (up to 60.4 mph)
- Take still JPEG photos at up to 4000 x 3000 resolution
- Capable of withstanding Level 5 winds of up to 24 mph
- microSD slot for optional cards up to 256GB
- Compatible with FPV Remote Controller 2, Goggles V2, FPV Goggles V2, and DJI Motion Controller
Specs
Performance
Camera
Gimbal
Flight Control System
Vision System
Remote Controller / Transmitter
Flight Battery
General
| Maximum Takeoff Weight | 14.5 oz / 410 g |
| Maximum Horizontal Speed | 17.9 mph / 8 m/s (Normal) 31.3 mph / 14 m/s (Sport) 60.4 mph / 27 m/s (Manual) |
| Maximum Ascent Speed | 13.4 mph / 6 m/s |
| Maximum Descent Speed | 13.4 mph / 6 m/s |
| Maximum Wind Resistance | 23.9 mph / 10.7 m/s |
| Flight Ceiling | 3.1 Miles / 5000 m |
| Maximum Flight Time | 18 Minutes |
| Maximum Hover Time | 18 Minutes |
| Hovering Accuracy | ±0.3' / 0.1 m Vertical with Vision Positioning ±1.6' / 0.5 m Vertical with GPS ±1.0' / 0.3 m Horizontal with Vision Positioning ±4.9' / 1.5 m Horizontal with GPS |
| Sensor Type | 1/1.7"-Type CMOS Sensor |
| Sensor Resolution | Effective: 48 Megapixel |
| Focal Length | 2.3mm / 12.7mm (35mm Equivalent) |
| Field of View | 155° |
| Maximum Aperture | f/2.8 |
| Minimum Focus Distance | 2' / 0.6 m |
| ISO Sensitivity | 100 to 6400 in Auto Mode 100 to 25,600 in Manual Mode |
| Shutter Speed | 1/8000 to 1/50 Seconds |
| Video Format | 3840 x 2160p at 50/60 fps (150 Mb/s MP4 via H.265/HEVC) 2704 x 1520p at 50/60/100 fps (150 Mb/s MP4 via H.265/HEVC) 1920 x 1080p at 50/60/100 fps (150 Mb/s MP4 via H.265/HEVC) |
| Still Image Support | JPEG (4000 x 3000) |
| Internal Storage | 20 GB |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [256 GB Maximum] |
| Photo Modes | Single Shot |
| Number of Axes | 1 (Pitch) |
| Control Range | Pitch: -80 to 65° |
| Angular Speed | Pitch: 60°/s |
| Control Accuracy | ±0.01° |
| GNSS Support | GPS, BeiDou, Galileo |
| Vision System | Downward |
| Obstacle Sensory Range | 1.6 to 65.6' / 0.5 to 20.0 m |
| Operating Environment | Surface with Clear Patterns at >15 lux |
| Maximum Operating Distance | 6.2 Miles / 10 km |
| Battery Chemistry | Li-ion |
| Battery Capacity | 2420 mAh / 35.71 Wh |
| Charging Temperature | 41 to 104°F / 5 to 40°C |
| Weight | 5.7 oz / 162 g |
| Rotor Configuration | 4 |
| Operating Temperature | 14 to 104°F / -10 to 40°C |
| Diagonal Size | 4.7" / 120 mm |
| Overall Dimensions | 7.1 x 3.1 x 7.1" / 180.0 x 80.0 x 180.0 mm |

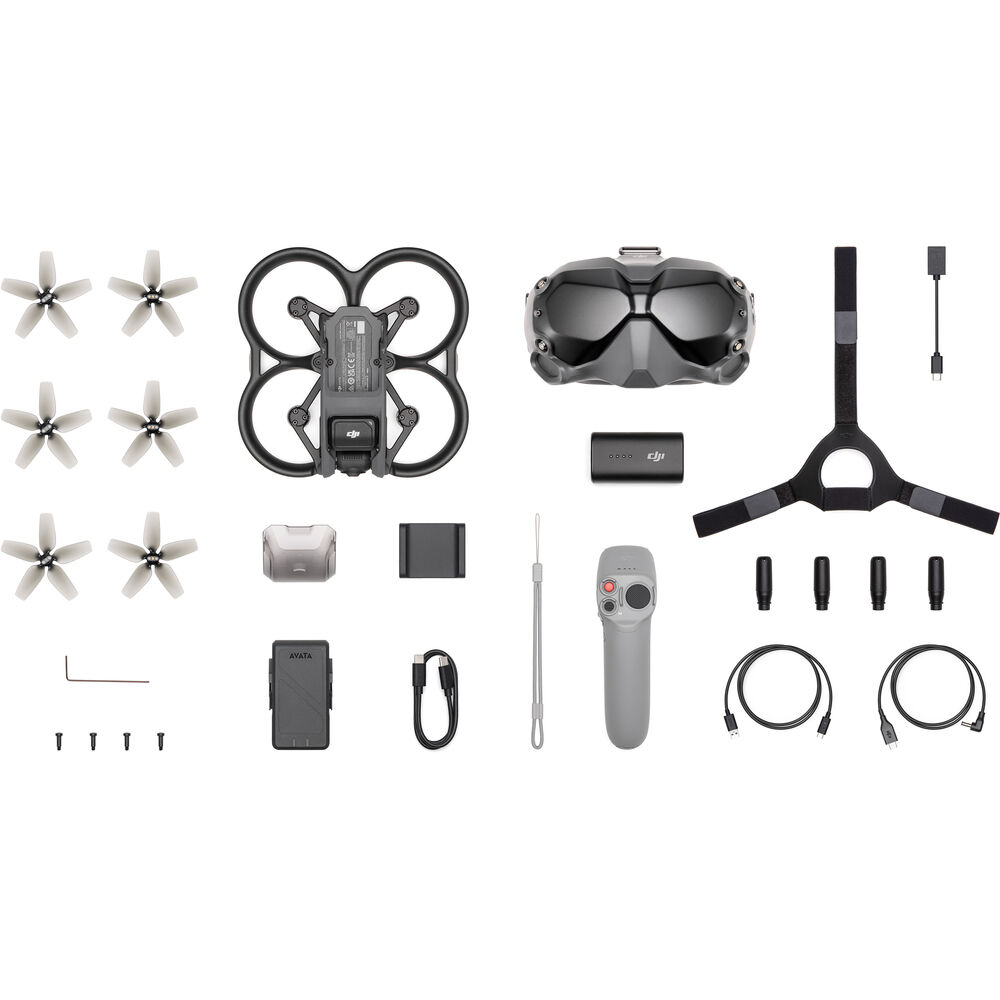

In The Box
- DJI Avata Fly Smart Combo
- Intelligent Flight Battery

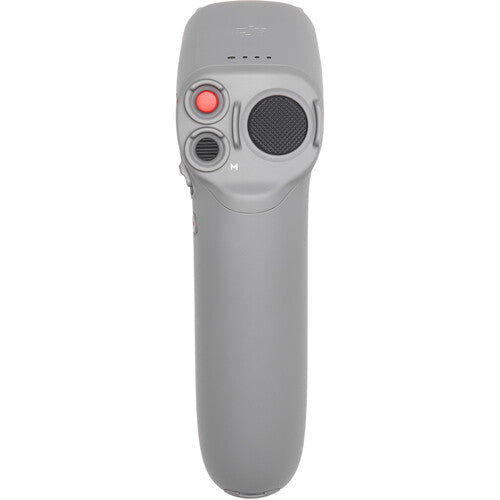

- DJI FPV Motion Controller

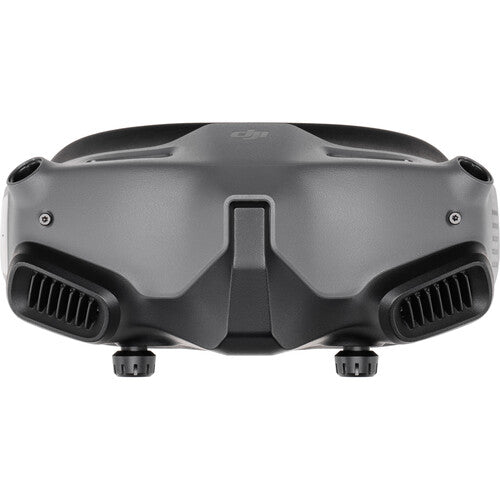

- DJI FPV Goggles V2

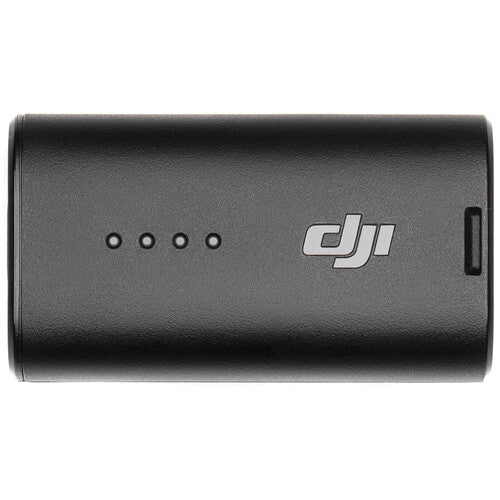

- FPV Goggles V2 Battery

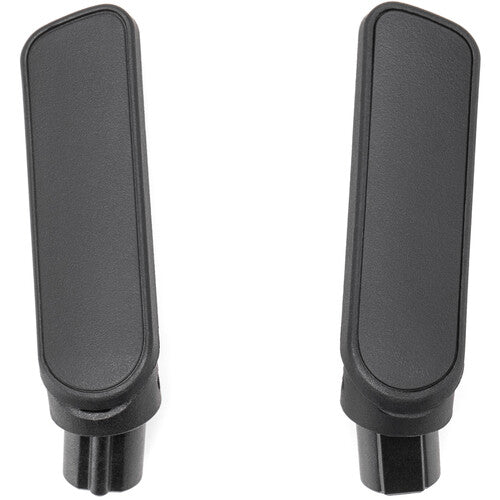

- FPV Goggles V2 Dual-Band Antenna

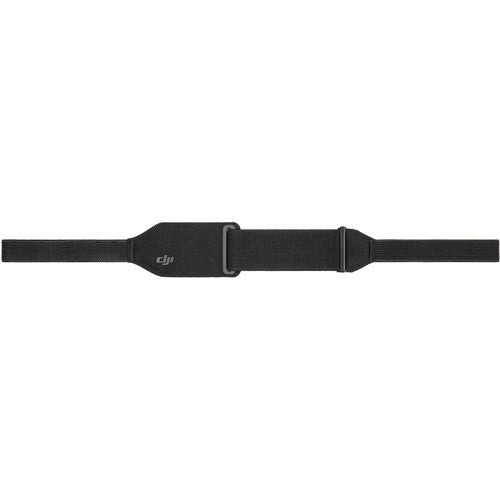

- FPV Goggles V2 Headband
- FPV Goggles V2 USB Type-C Cable

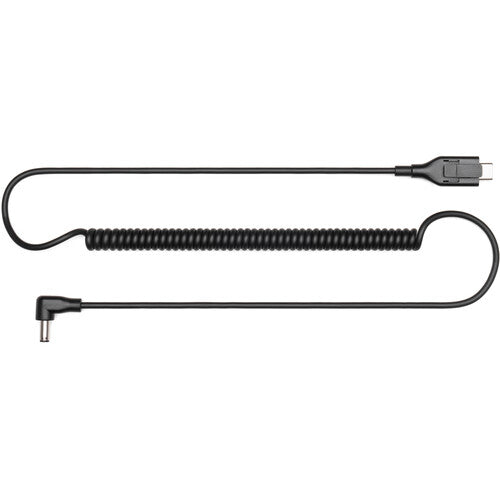

- FPV Goggles V2 USB Type-C Power Cable
- Propellers (Pair)
- Power Adapter

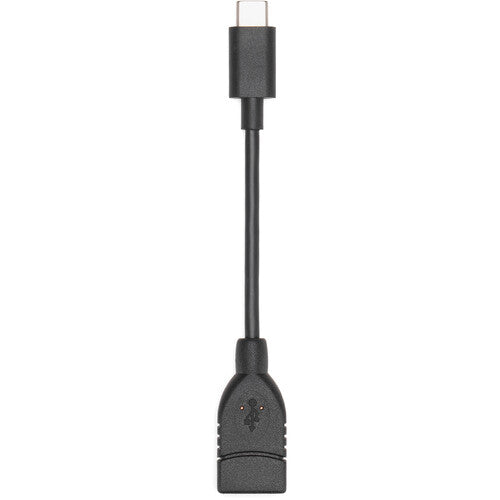

- USB Type-C PD Cable
- Gimbal Protector
- Lanyard
- Screwdriver
- M2x7 Screws
